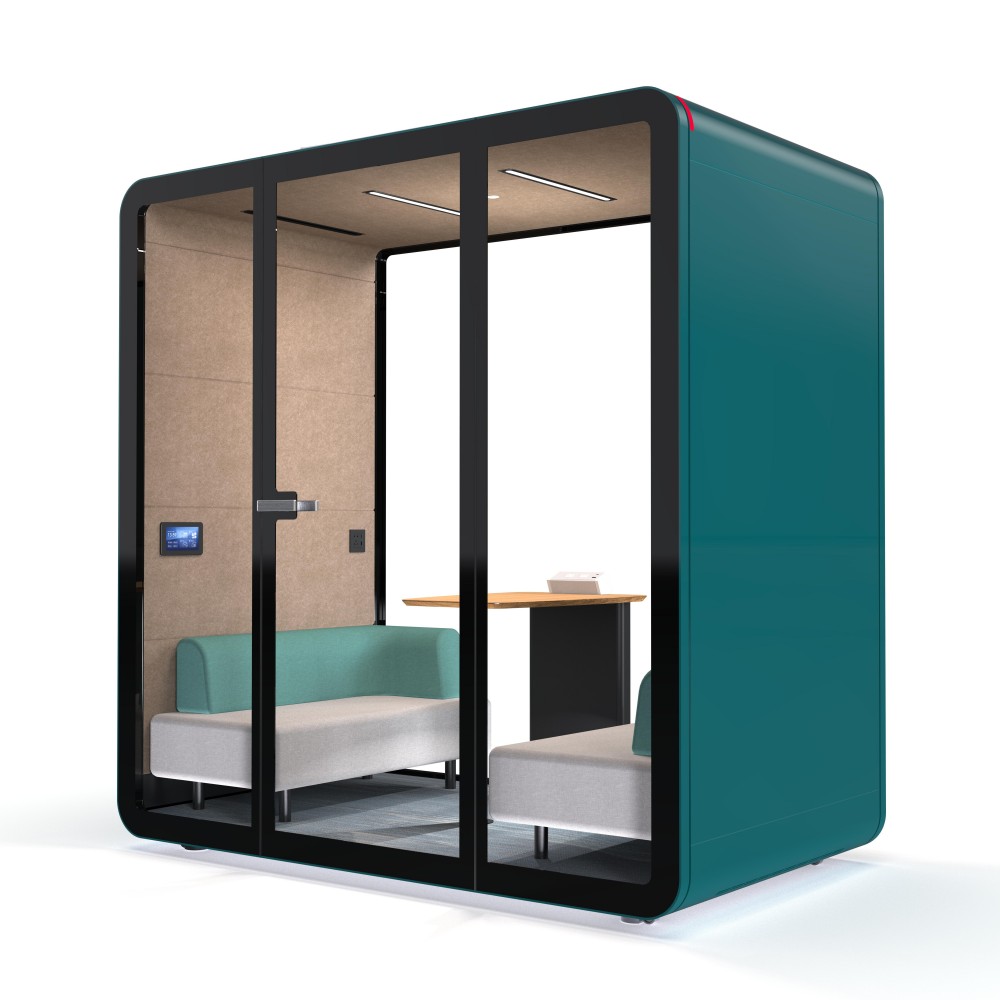

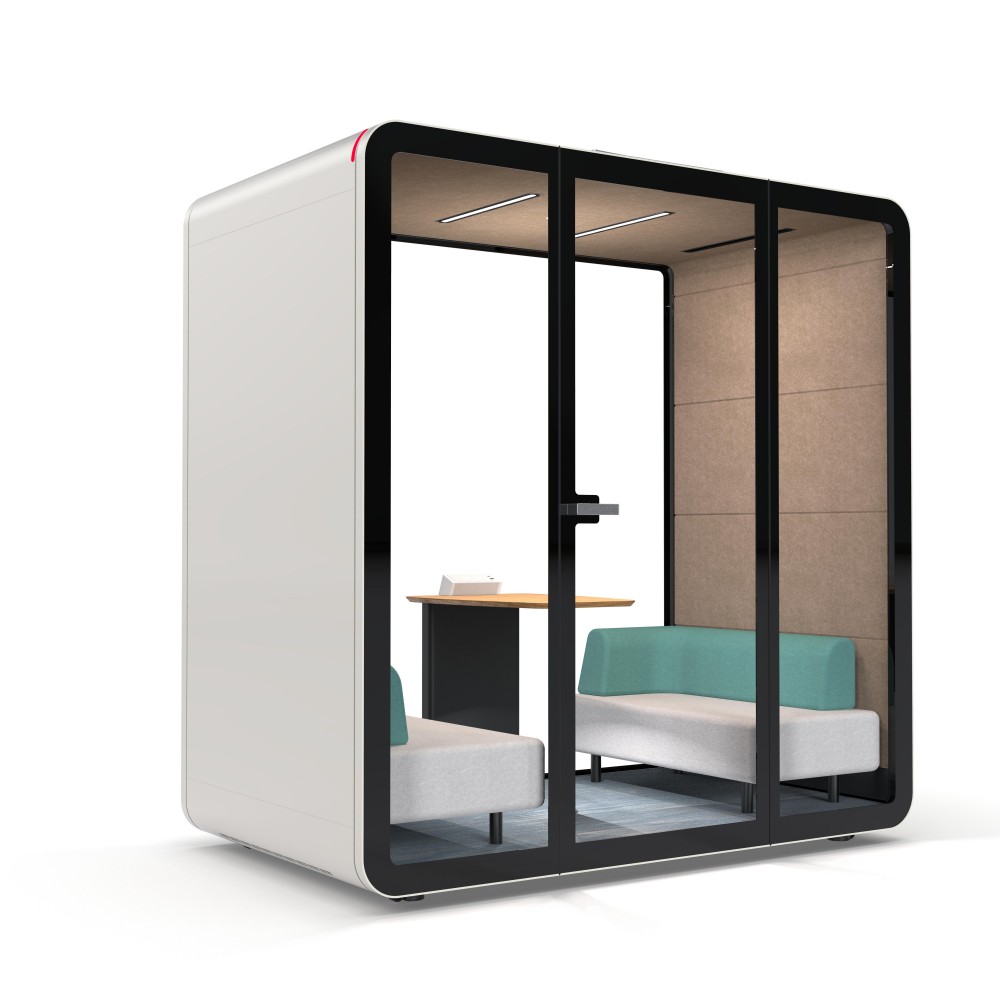

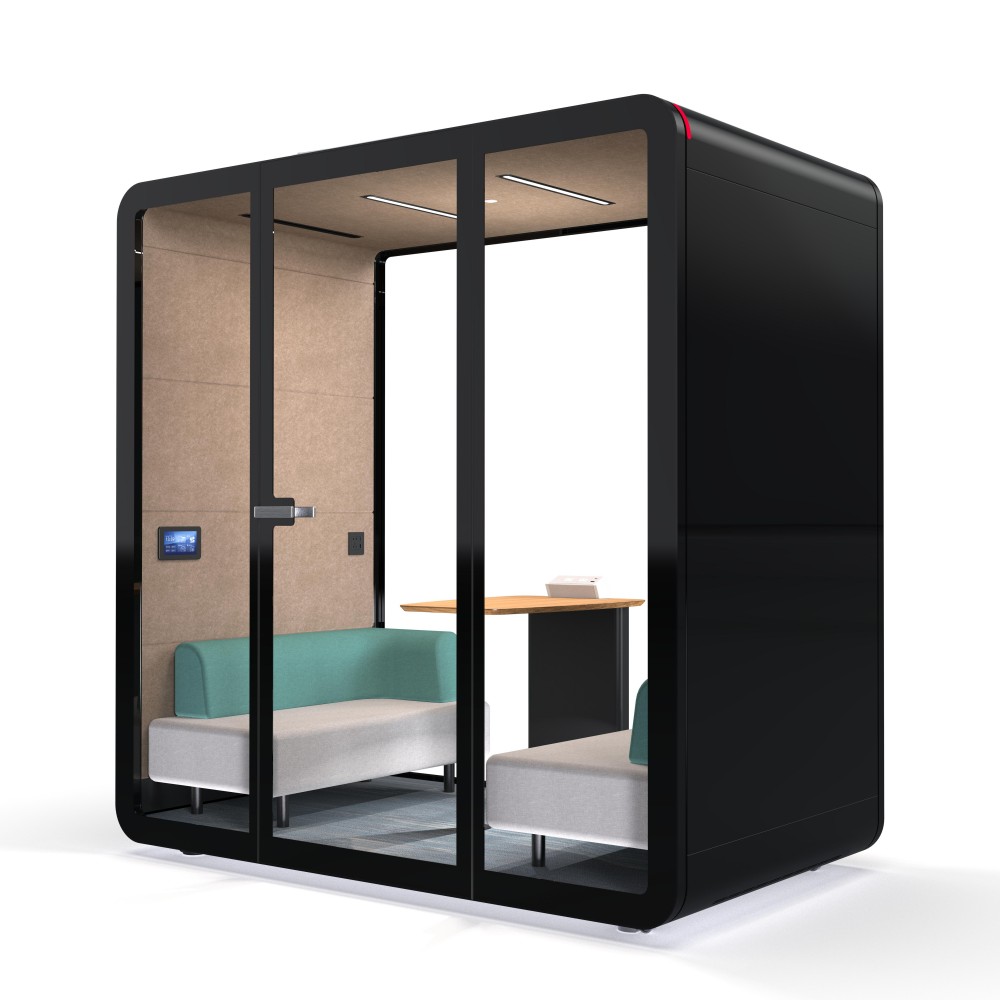

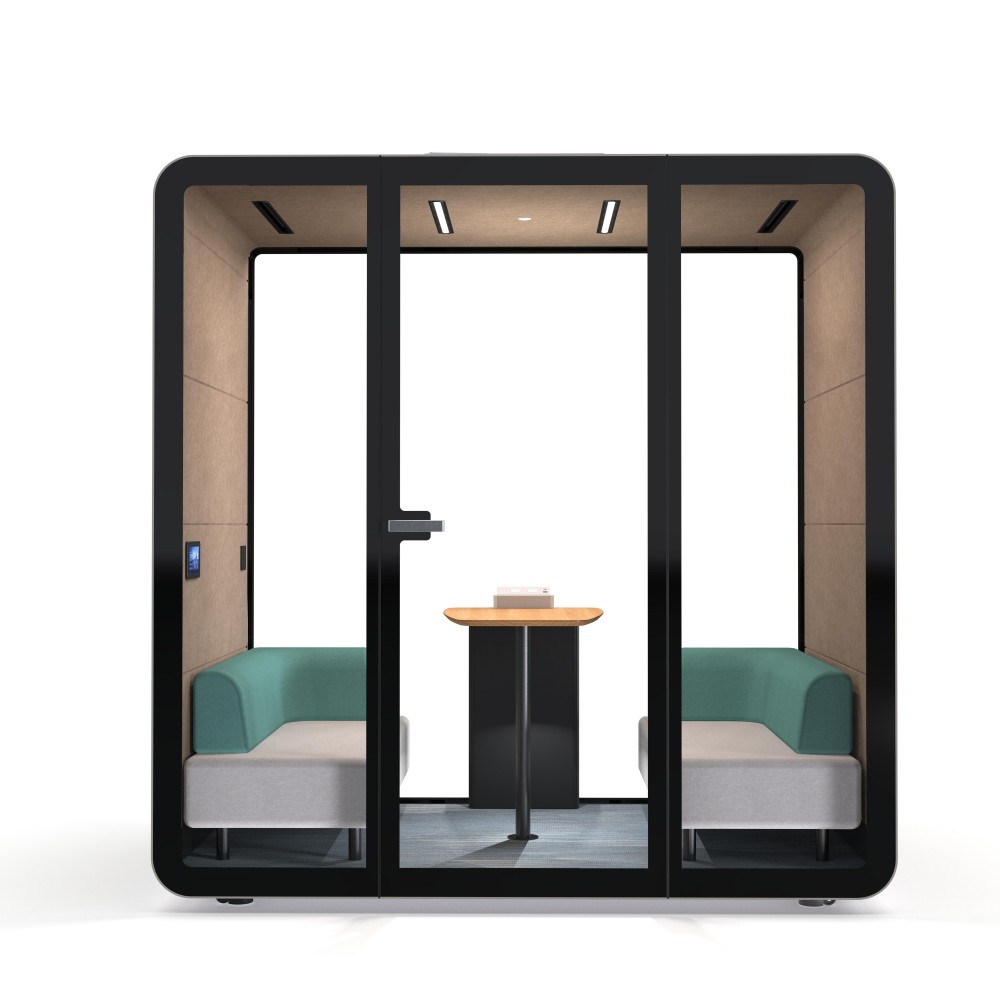

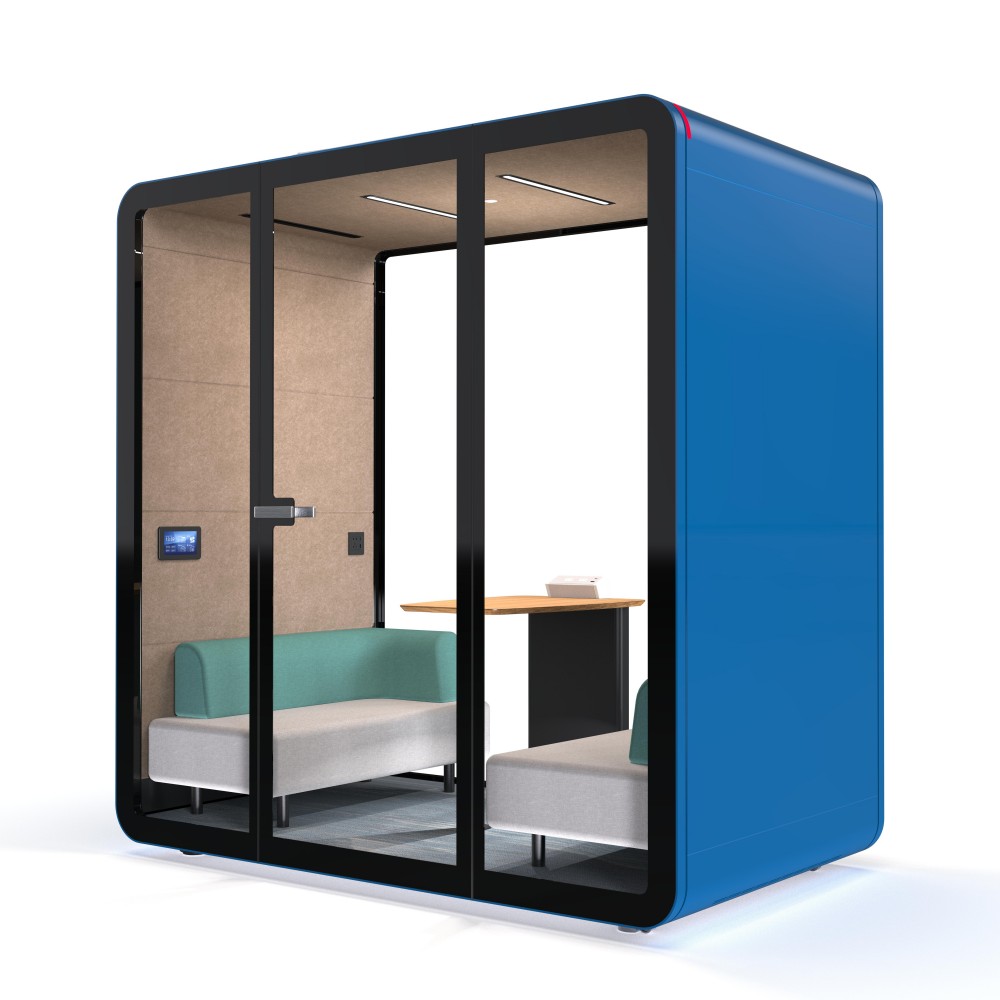

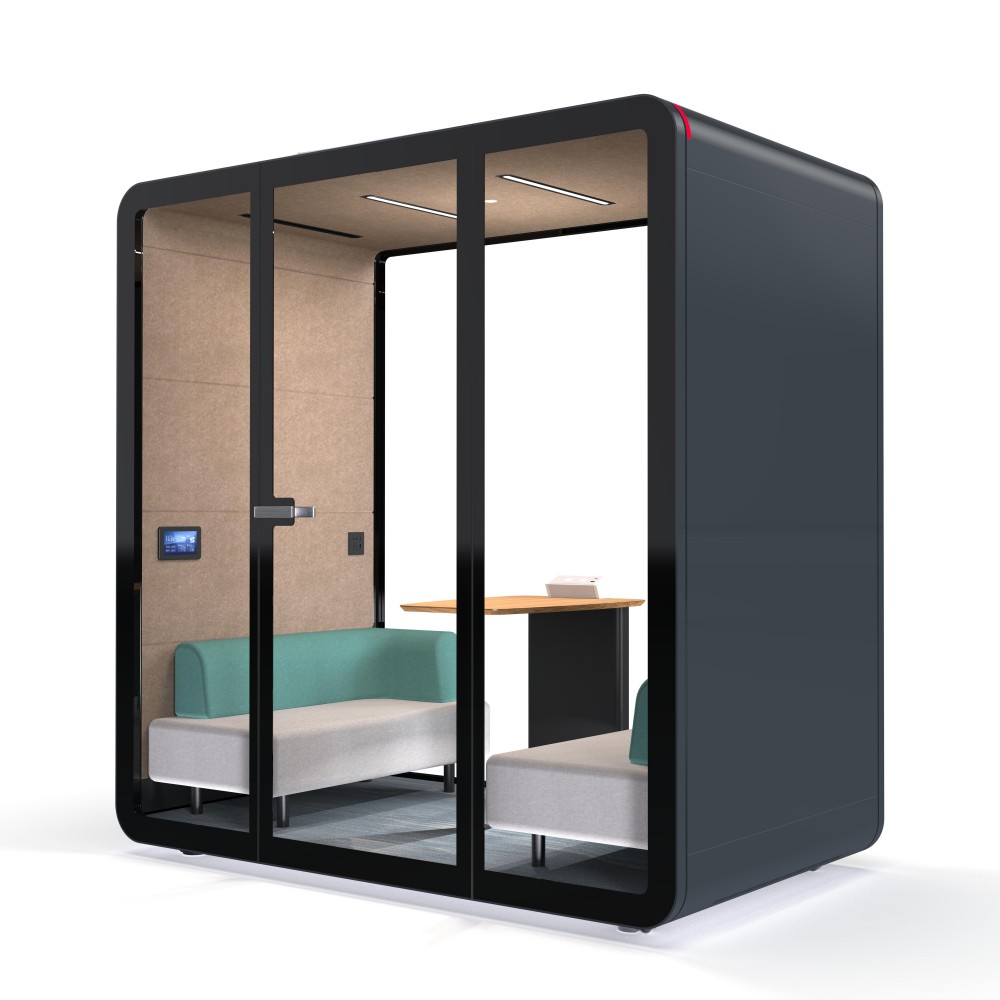

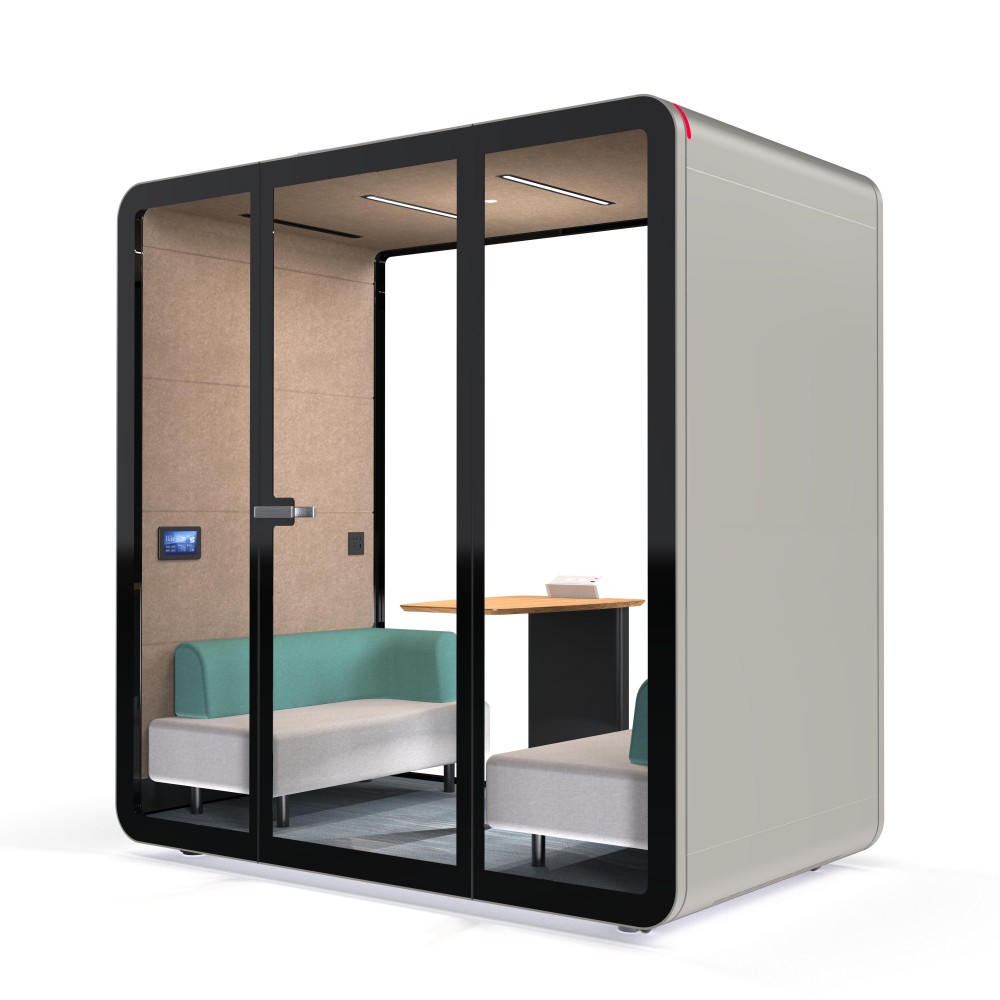

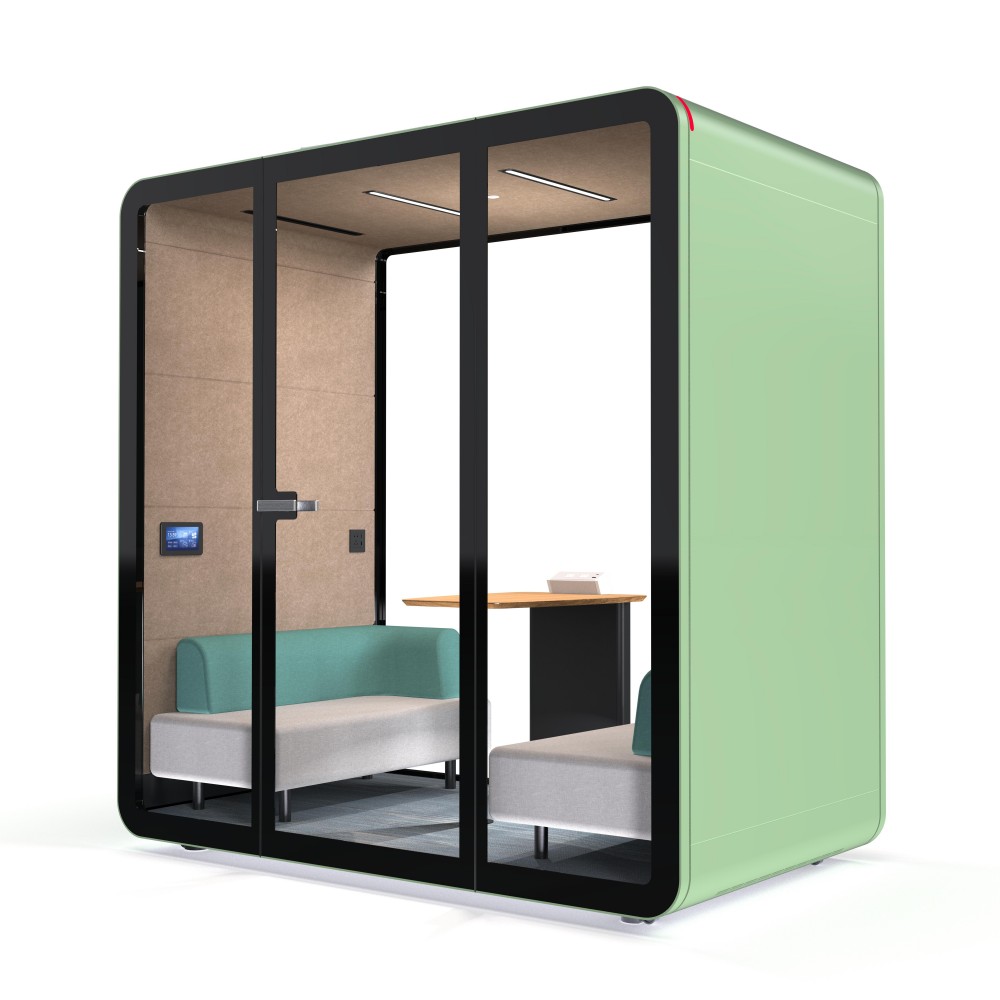

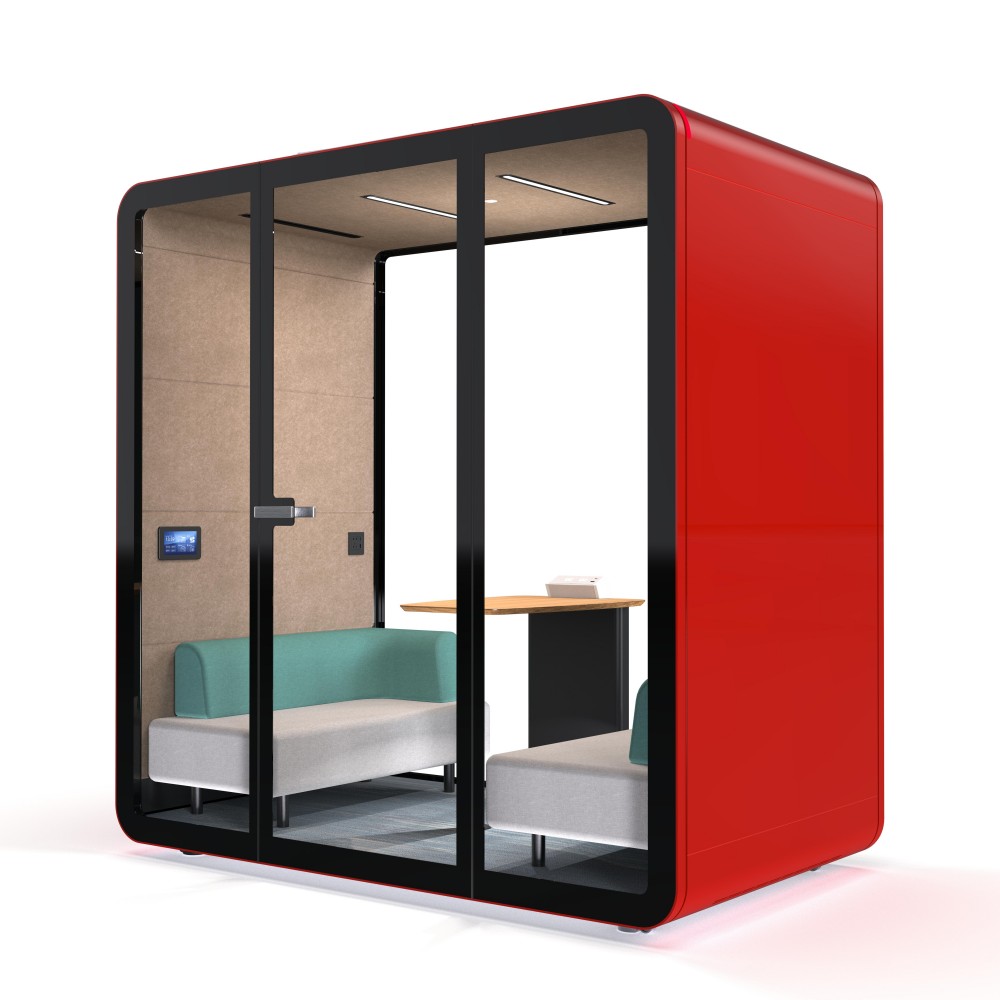

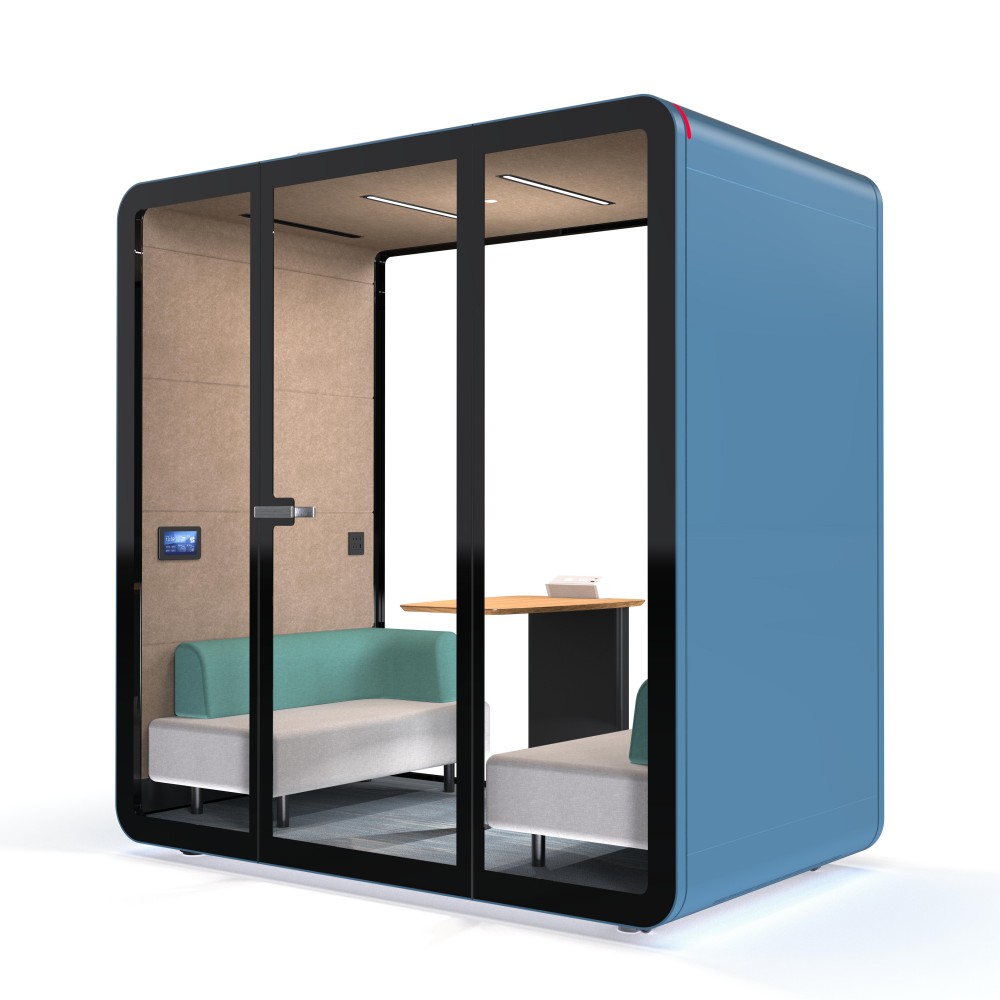

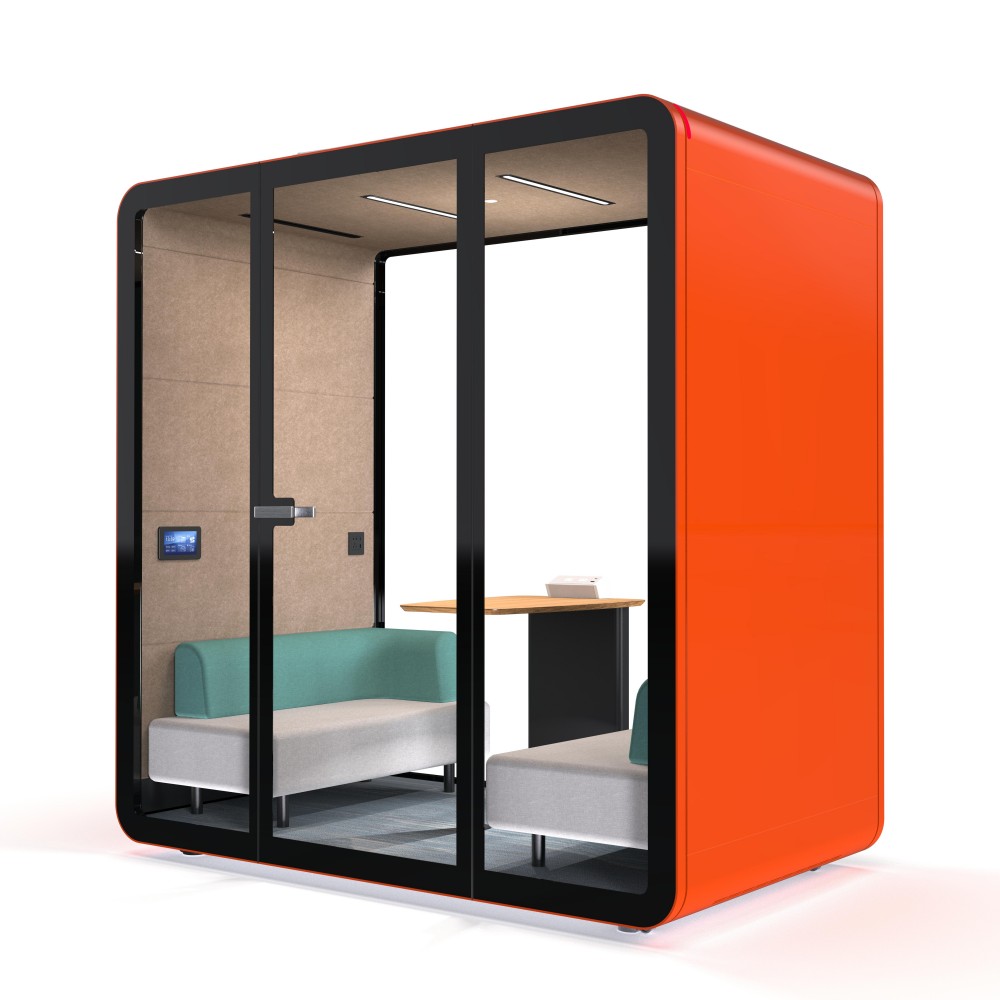

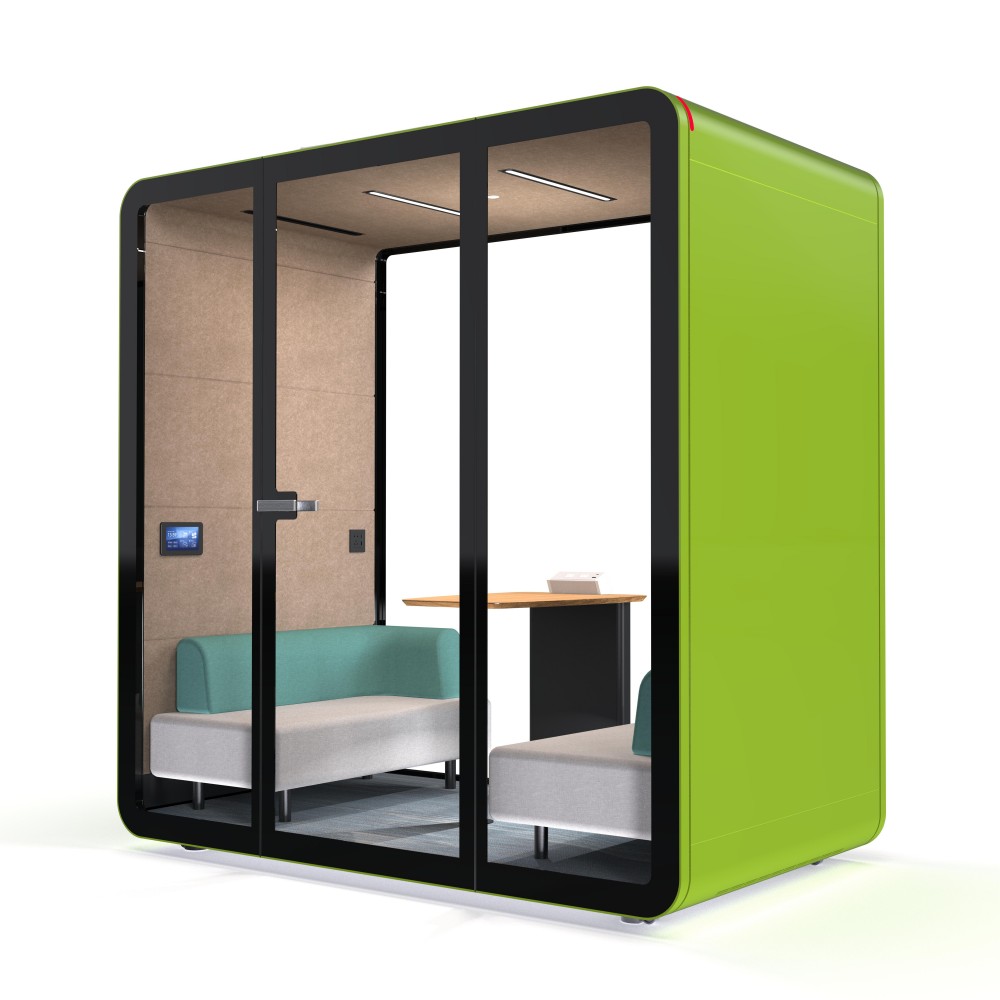

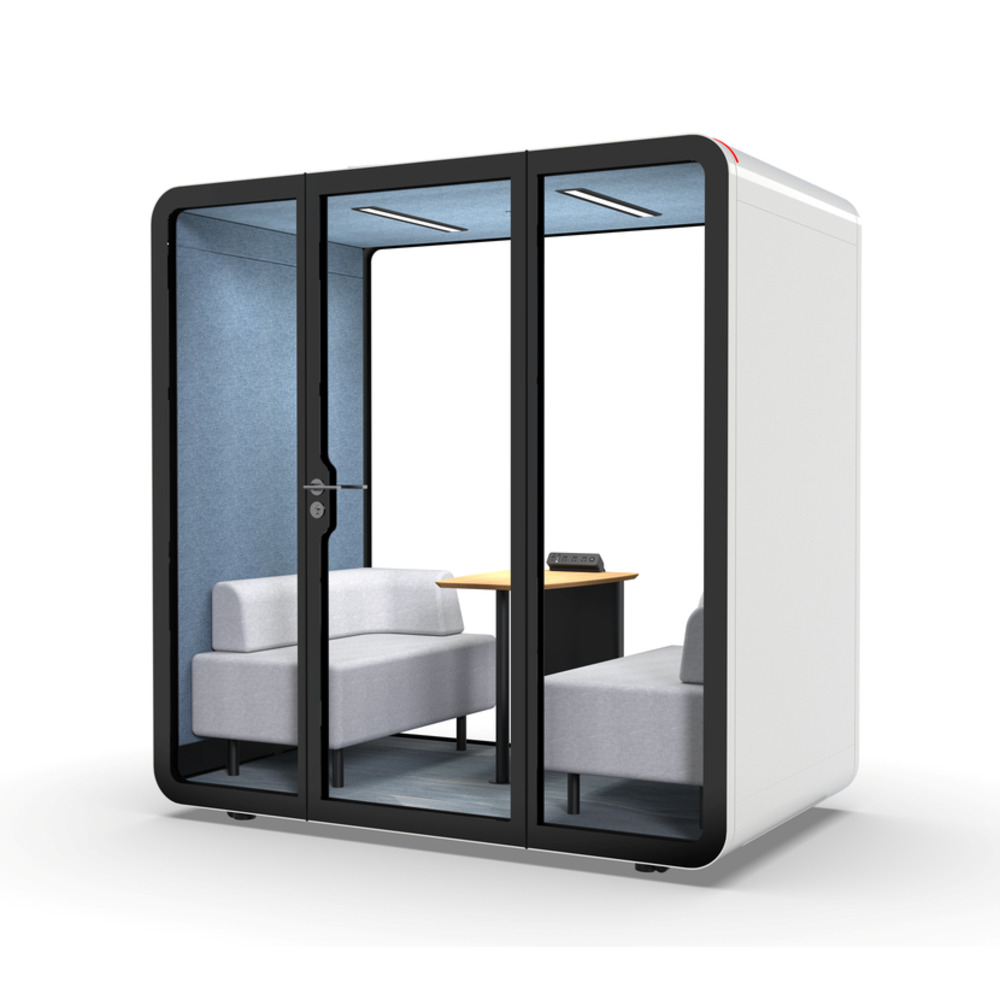

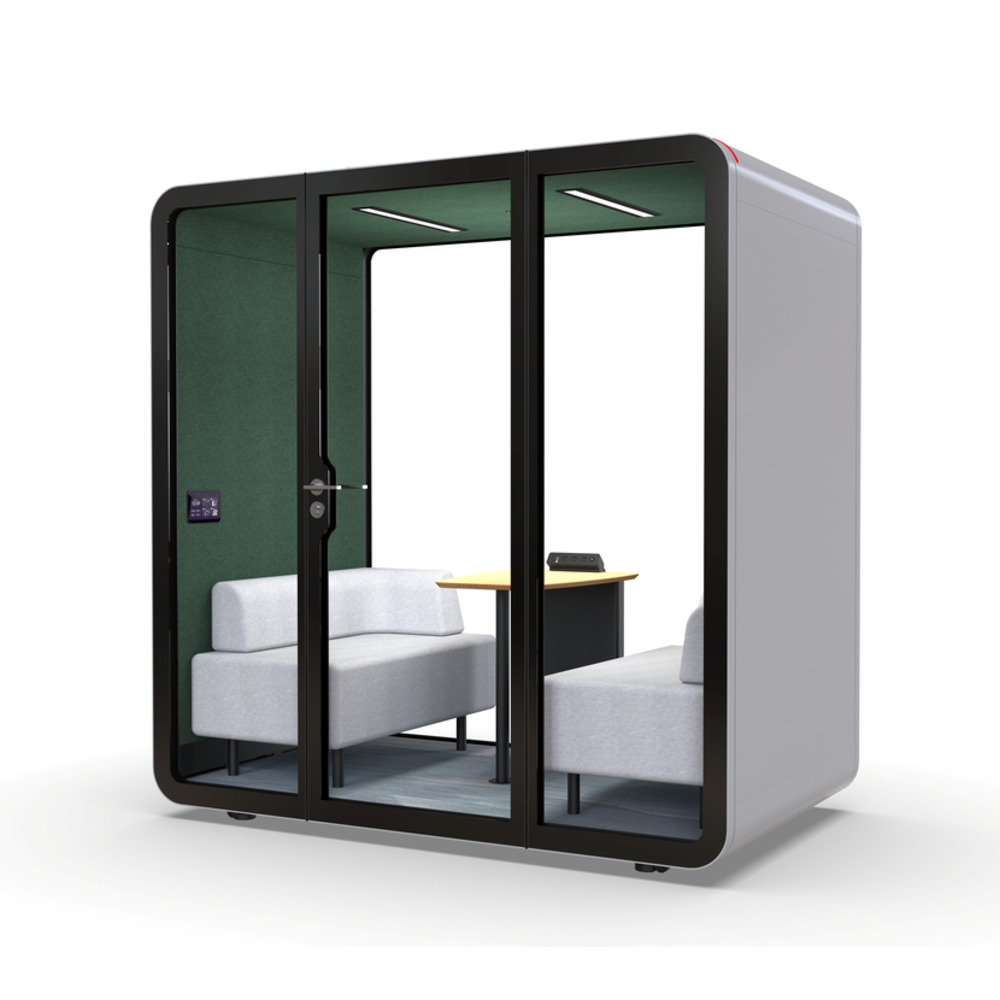

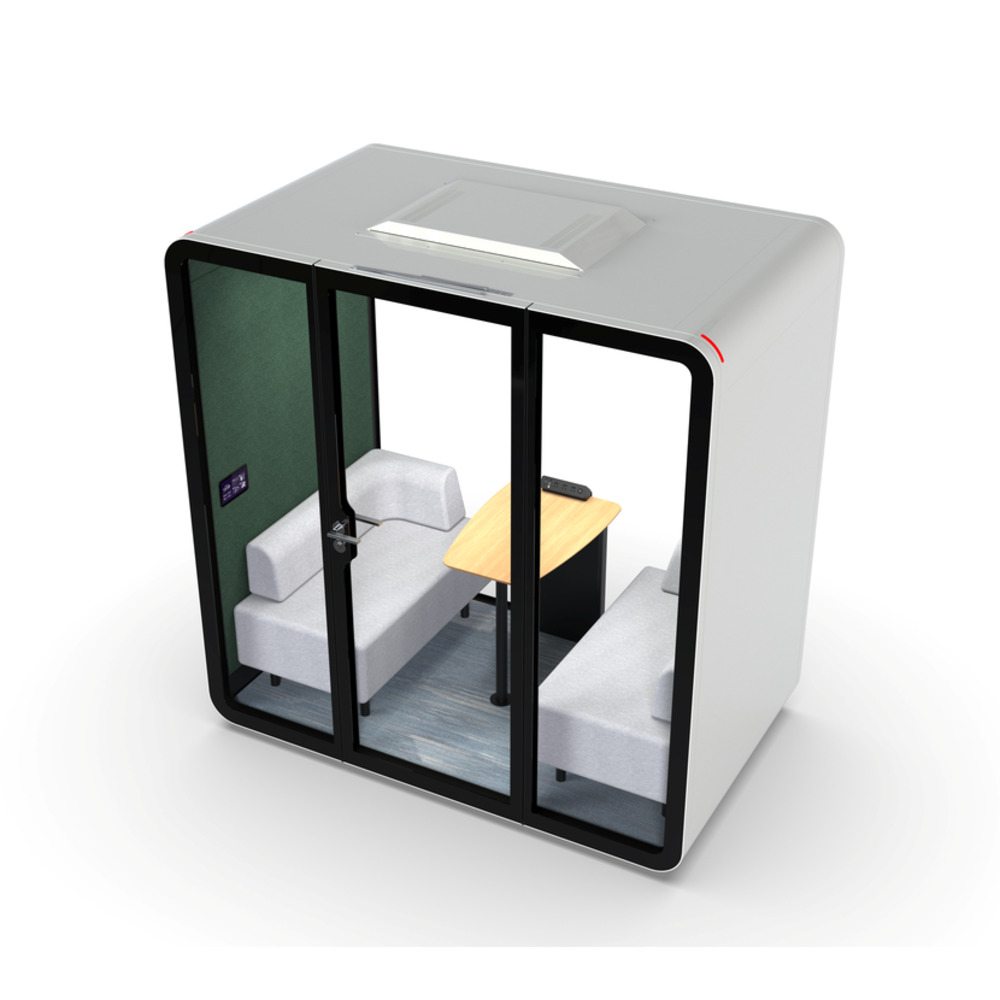

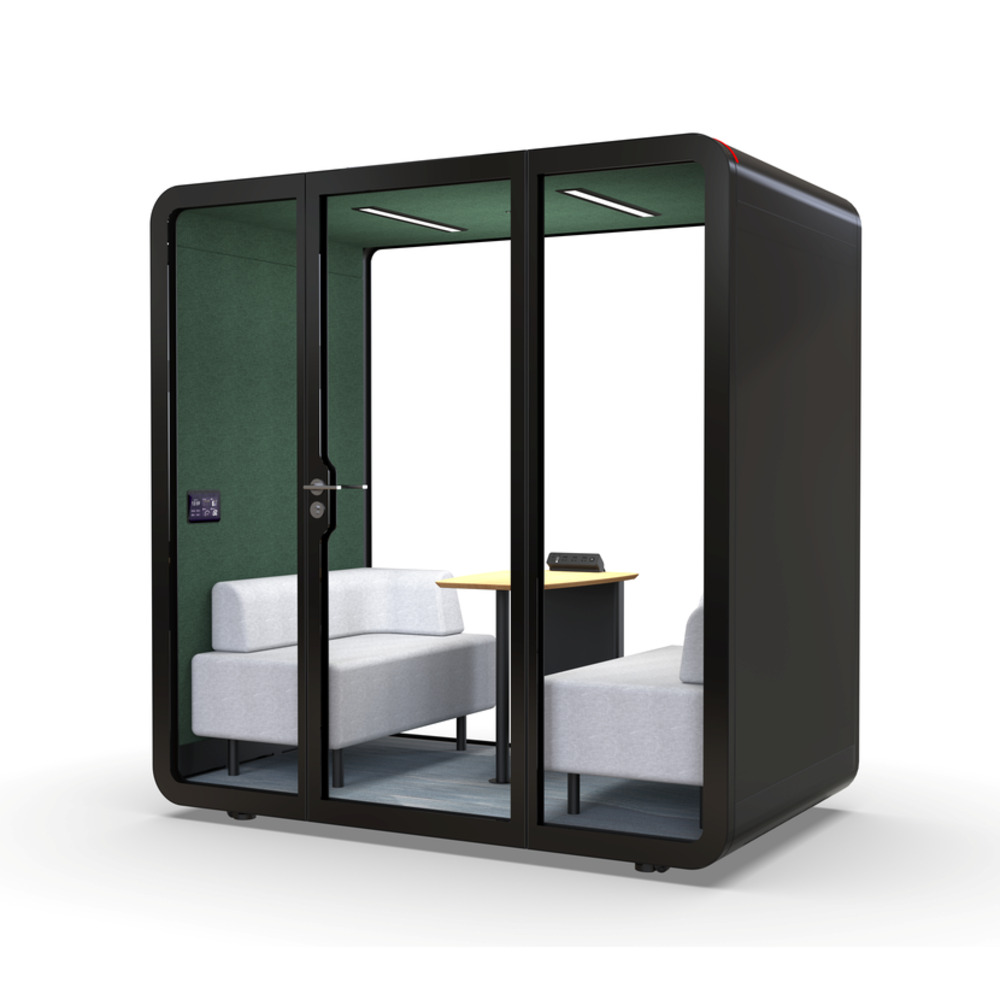

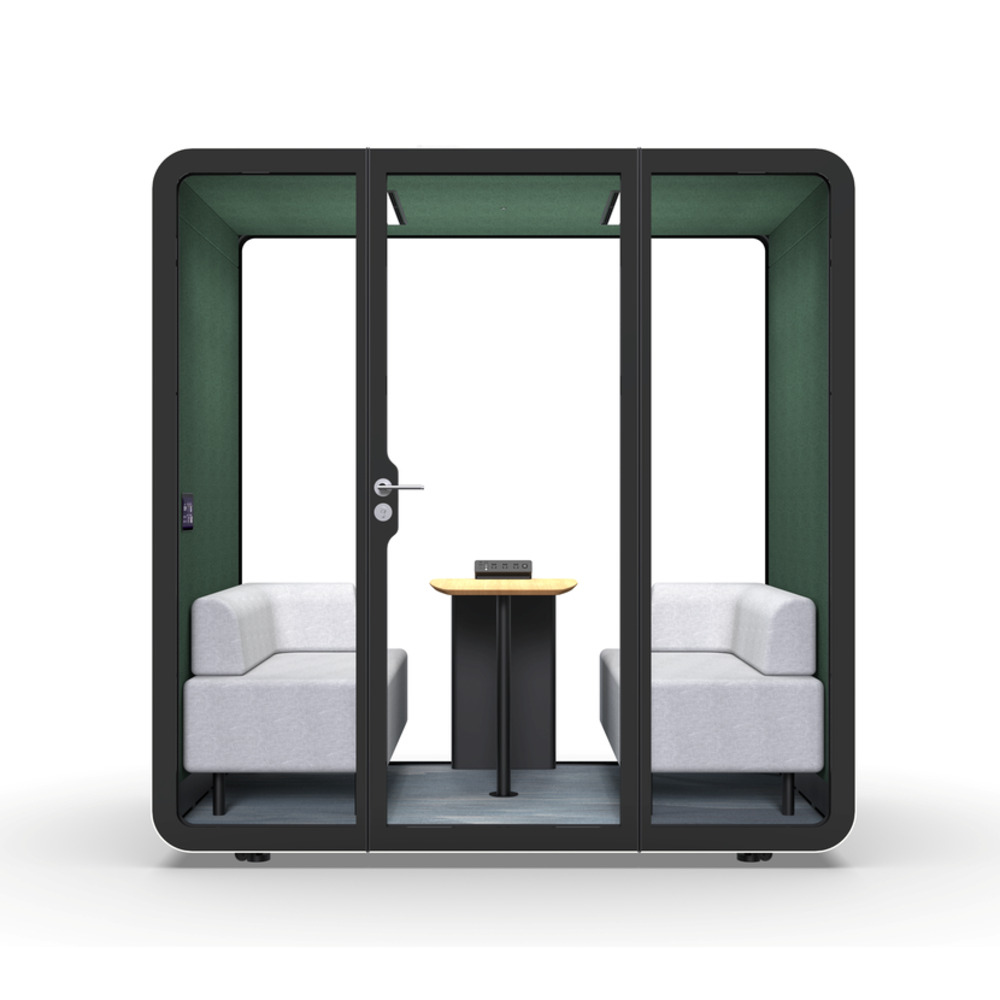

TB-M Fixed Collection

Name: TB-M Fixed Collection
SKU: 0

Crystal Series

Our pods promote focused work, allowing you to eliminate outside distractions.

Businesses can meet their targets, and self-employed individuals can create a better workplace environment in their own homes or rented space.

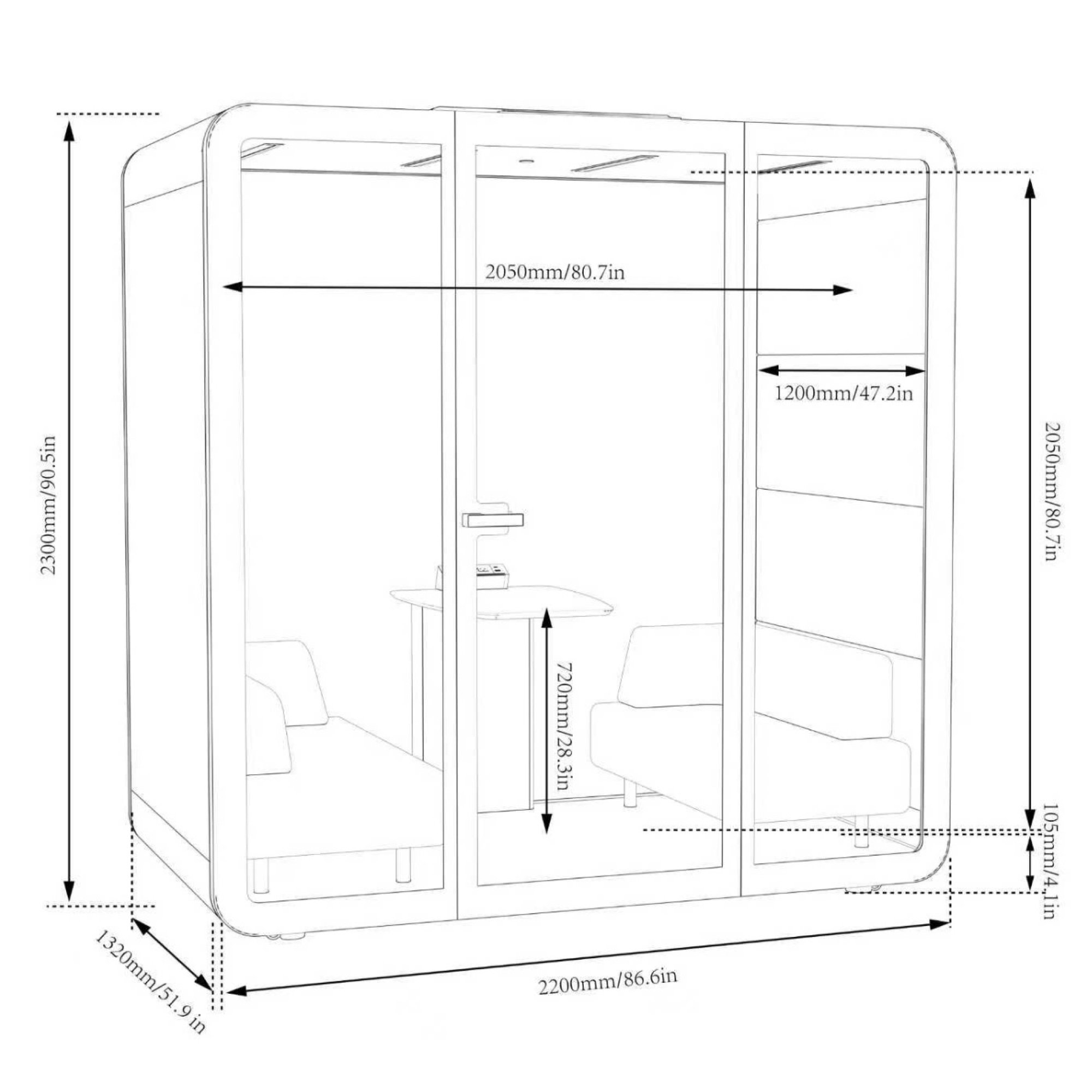

External dimensions	W2200 mm D1320 mm H2300 mm
Internal dimensions	W2050 mm D1200 mm H2000 mm
Internal structure	steel frame
External decoration materials	Akzo Nobel powder-coated steel plate (RAULcolor card)
Inner wall filling	polyurethane sound insulation material
Interior materials	Burgeree sound-absorbing board, Milliken carpet
Door leaf material	laminated sound insulation tempered glass(5mm+1.13mm+5mm)
Light on	It lights up when someone enters and goes off approximately 15 seconds after someone leaves by sensor (this time parameter can be set)
Ventilation system	Third-generation fresh air ventilation system

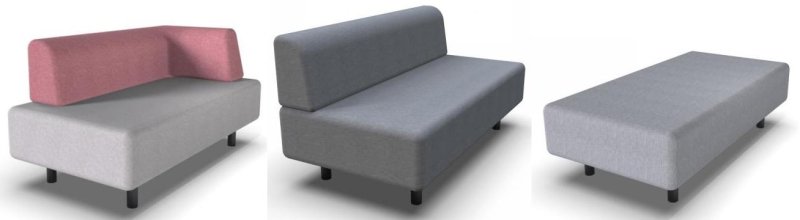

Furniture configuration	liftable bar chair, formica fireproof board composite imported marine board wall table (fixed bracket)
Power system	100-230V socket panel + touch screen speed dimming.

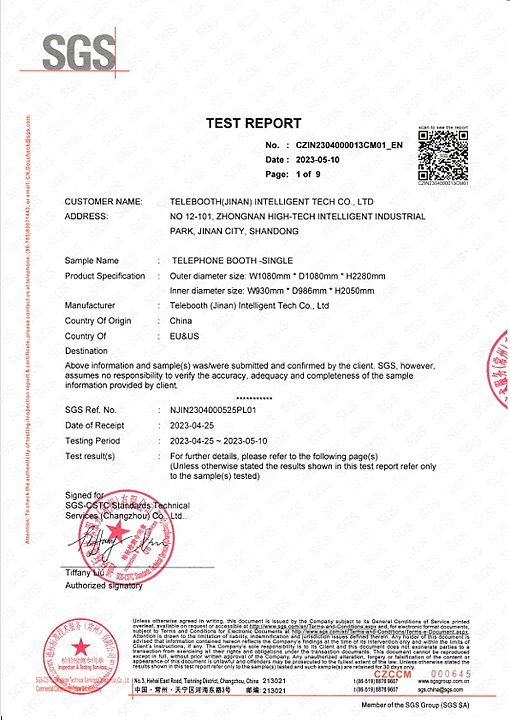

Sound insulation and noise reduction	28-30 dB (SGS or Institute of Acoustics, Chinese Academy of Sciences test report)
Mobility	Bottom liftable universal wheels x 4 movable

WhatsApp: +8615763997628

E-mail: sales@teleboothpod.com

Material selection

Exterior choice:

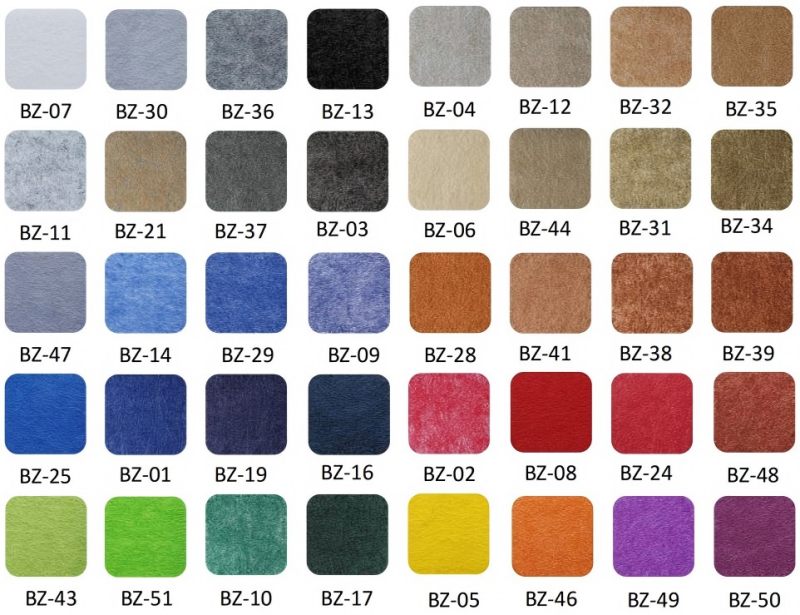

Internal sound-absorbing panel:

Commonly：

Optional：

Chair color options:

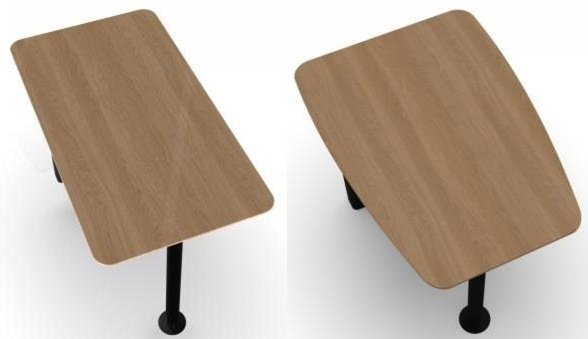

Table top:

Carpet selection:

Technical Highlights

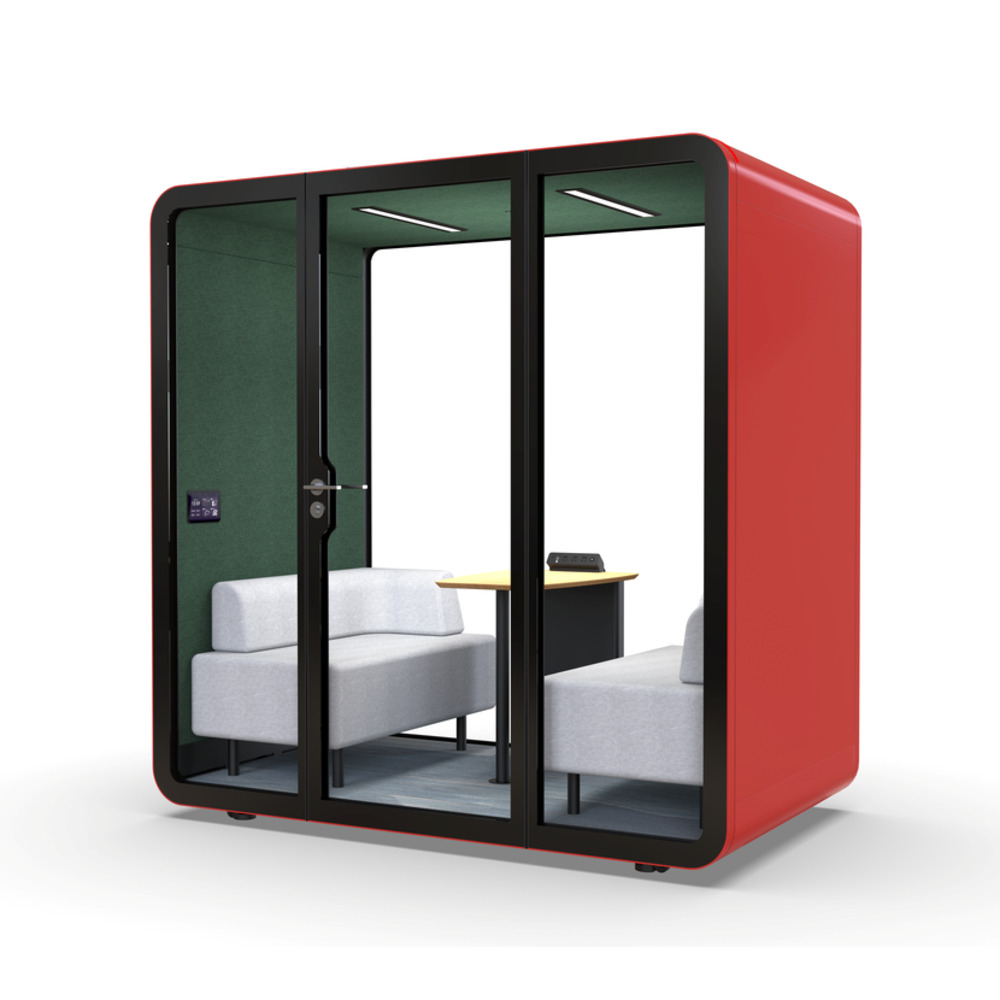

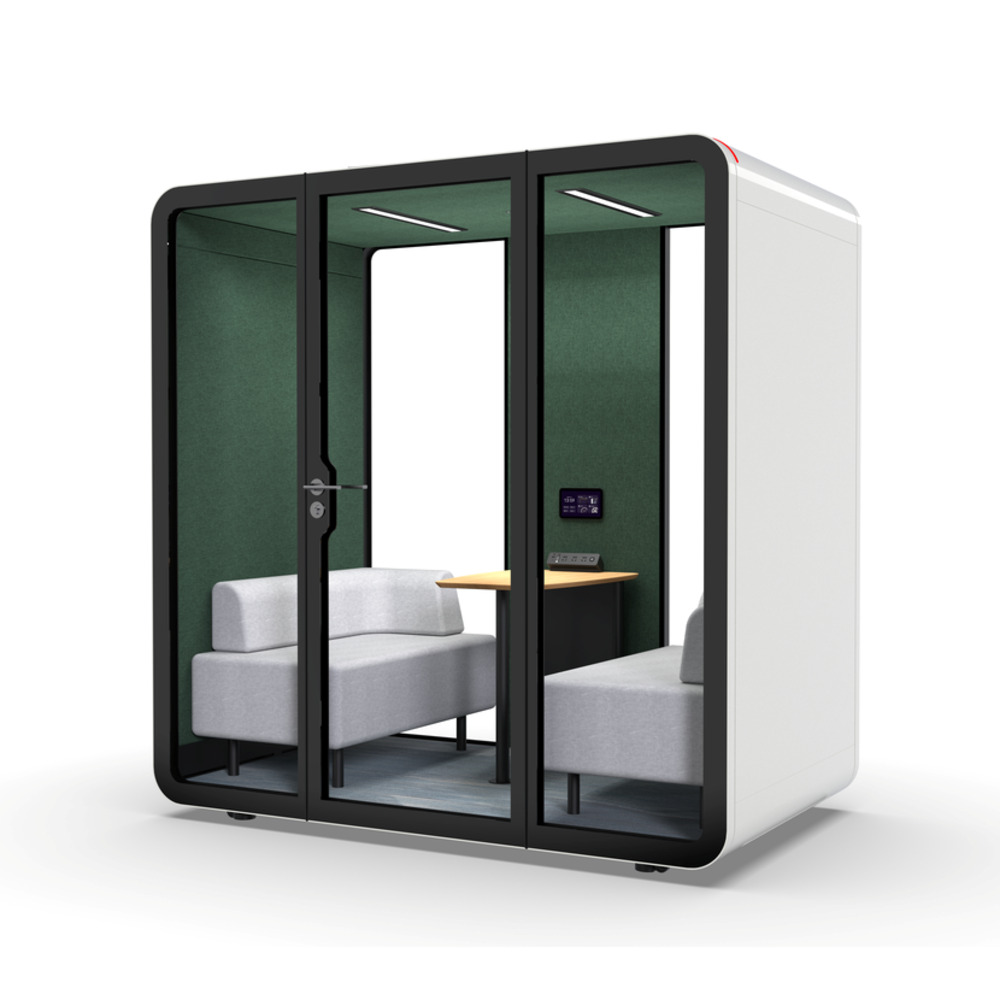

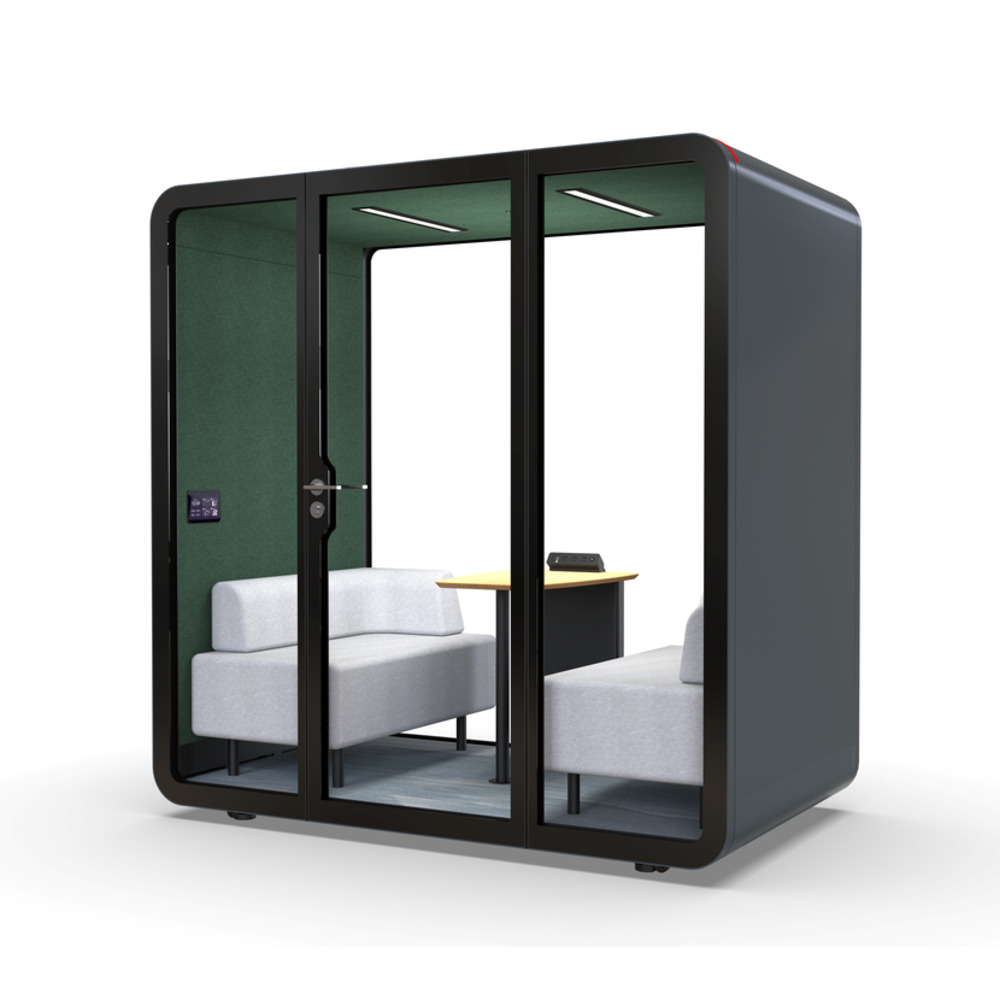

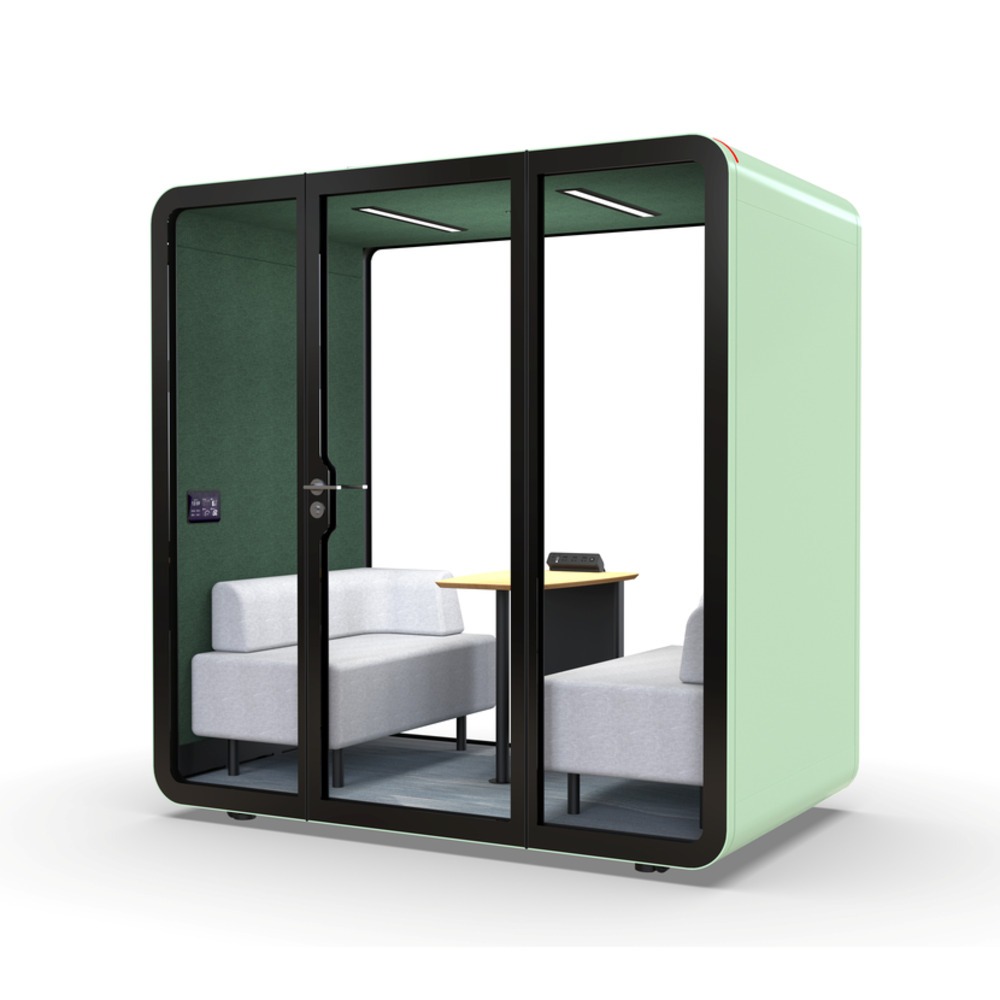

1. Capacity: 2-4 person. Dimensions are customizable; if you require a larger soundproof booth to accommodate more people, please provide your specifications for a custom order.
2. Steel frame construction: robust load-bearing capacity and high resistance to deformation.
3. Internally adjustable universal casters: adaptable to a wide variety of installation terrains.
4. Intelligent control system: fully customizable to specific requirements and supports remote software updates.
5. 30 dB sound reduction: Class A acoustic insulation for superior noise suppression.
6. Third-generation air circulation system: completes a full air exchange within the cabin in just 50 seconds.
7. Modular assembly: pre-wired at the factory, allowing for the complete assembly of a single cabin unit in just 1–2 hours.
8. Strategic partnership with AkzoNobel for powder coatings; utilizes exclusively eco-friendly materials that are 95% recyclable.
9. Customizable options available for interior layout as well as interior and exterior color schemes, perfectly tailored to meet diverse office requirements.
