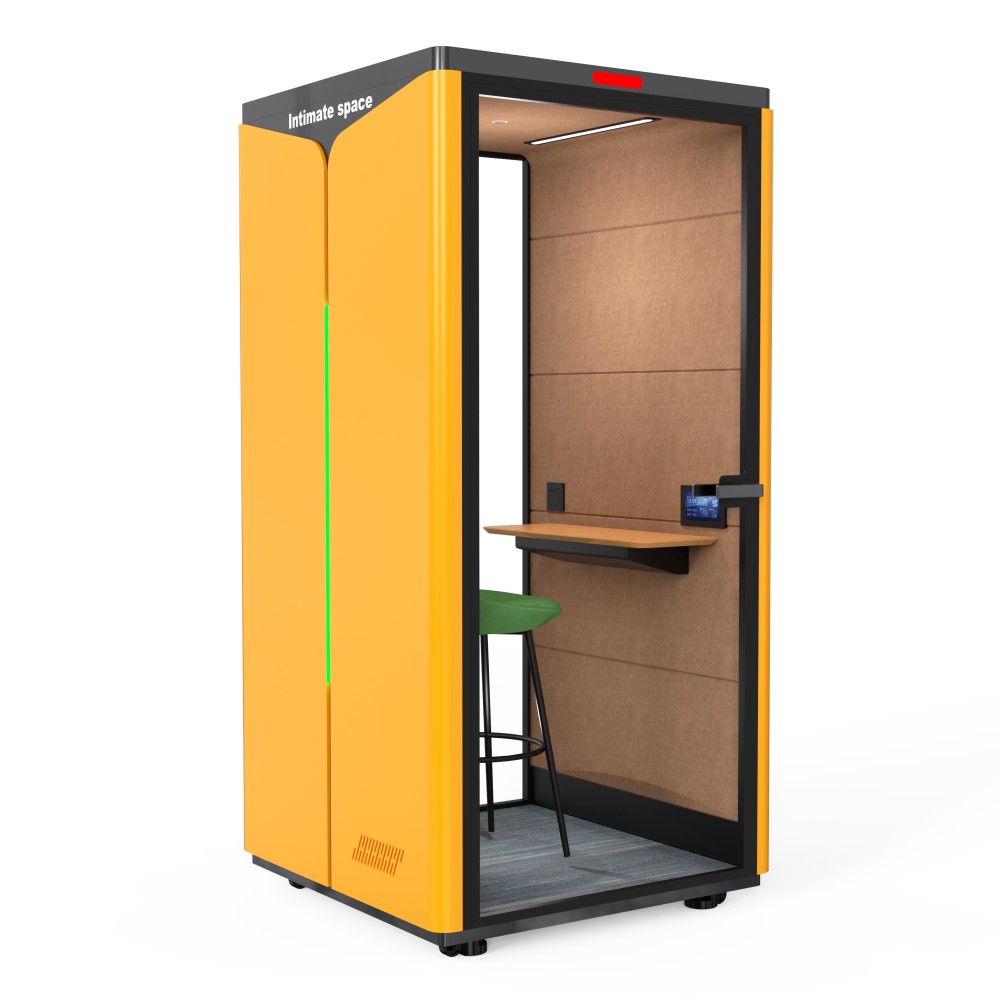

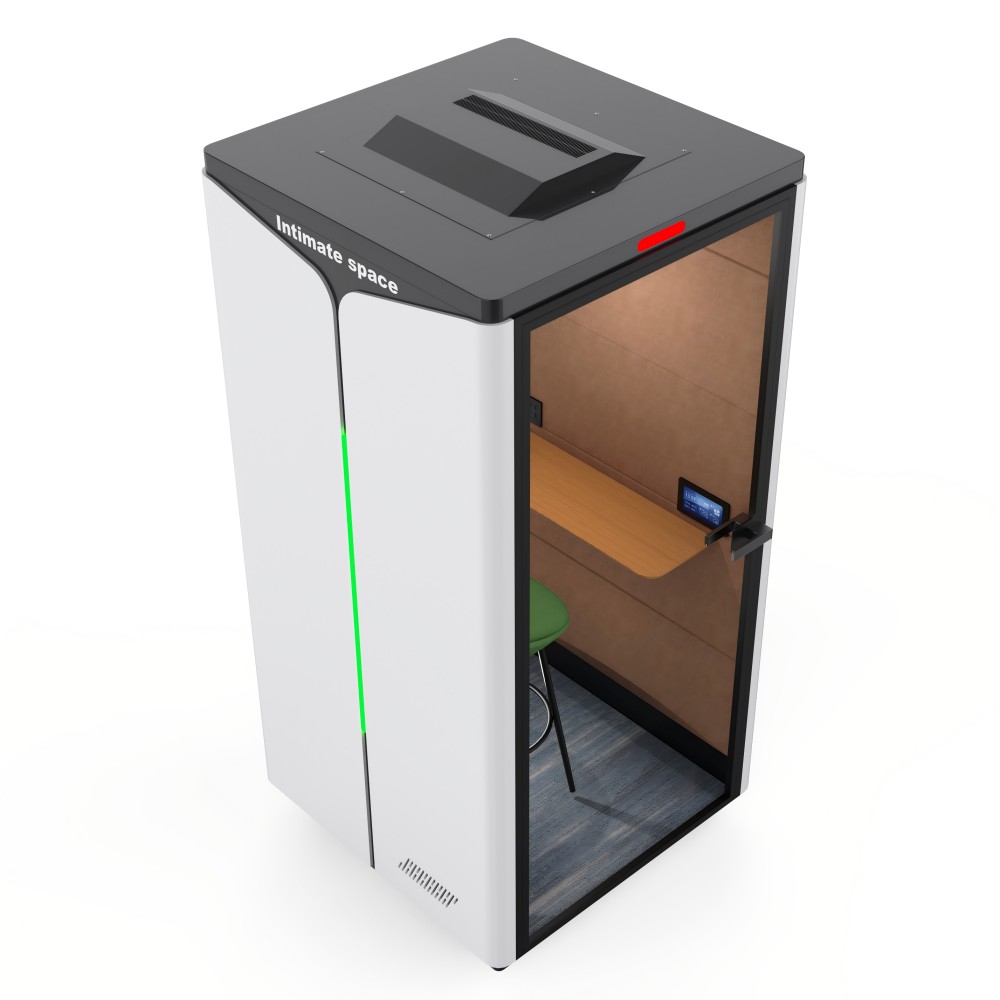

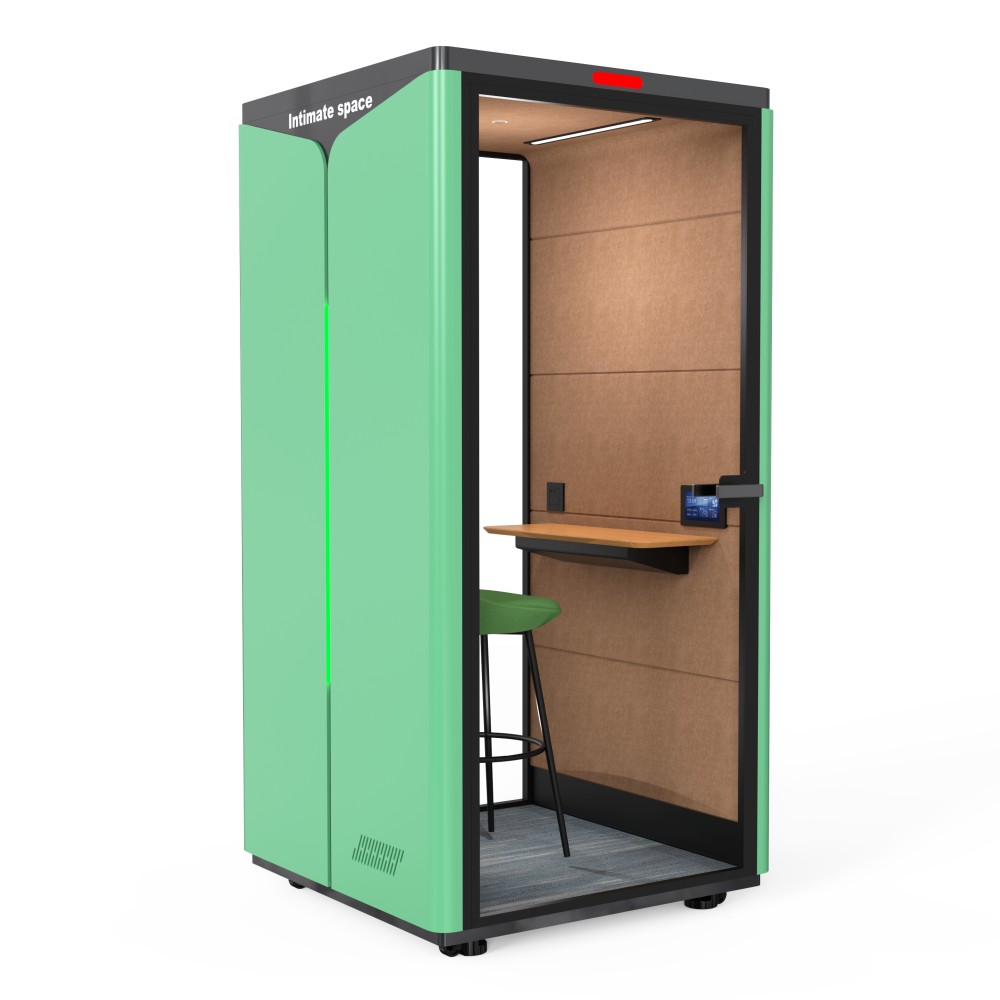

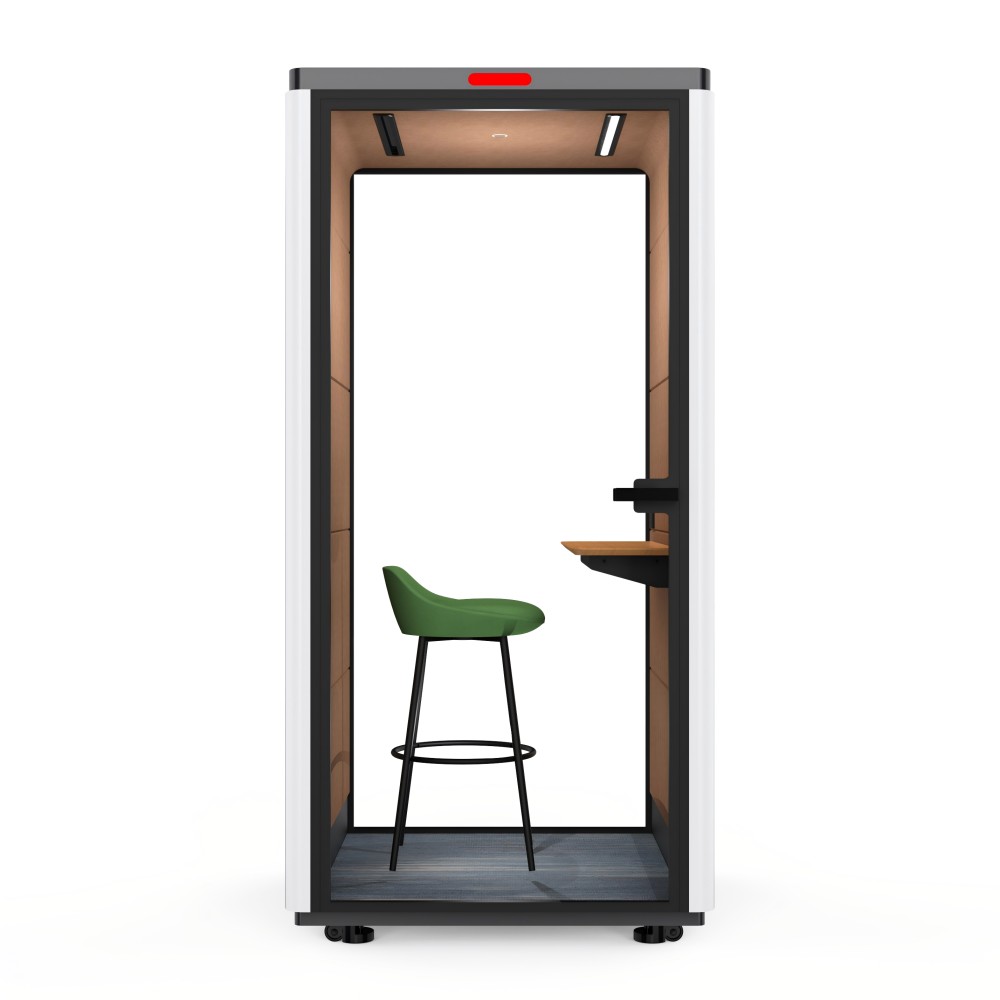

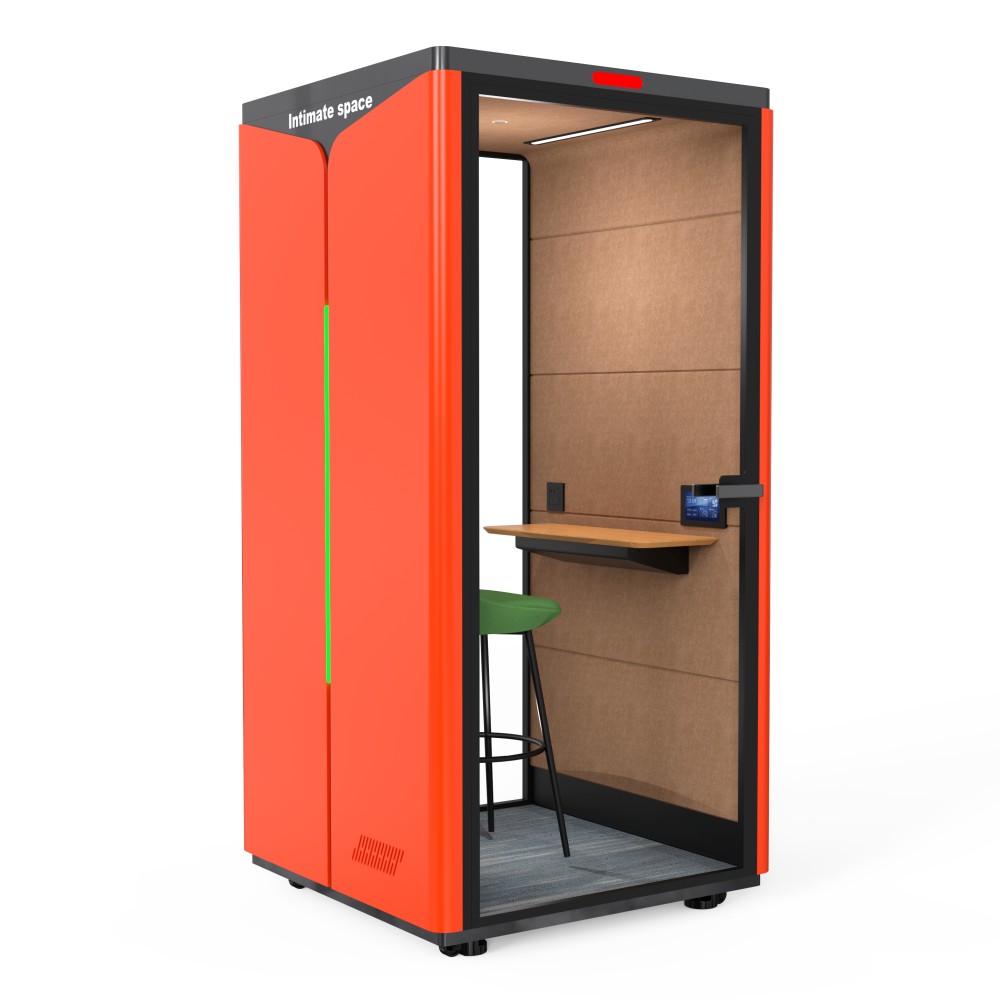

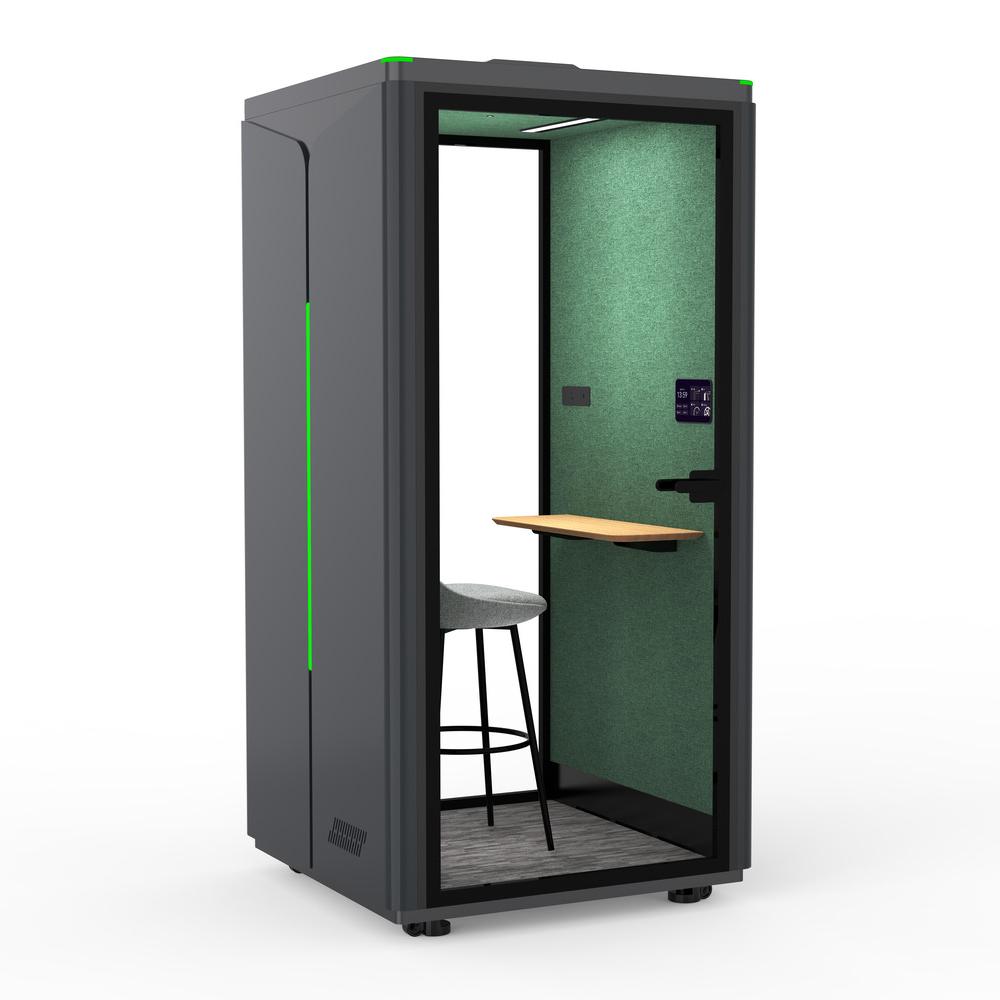

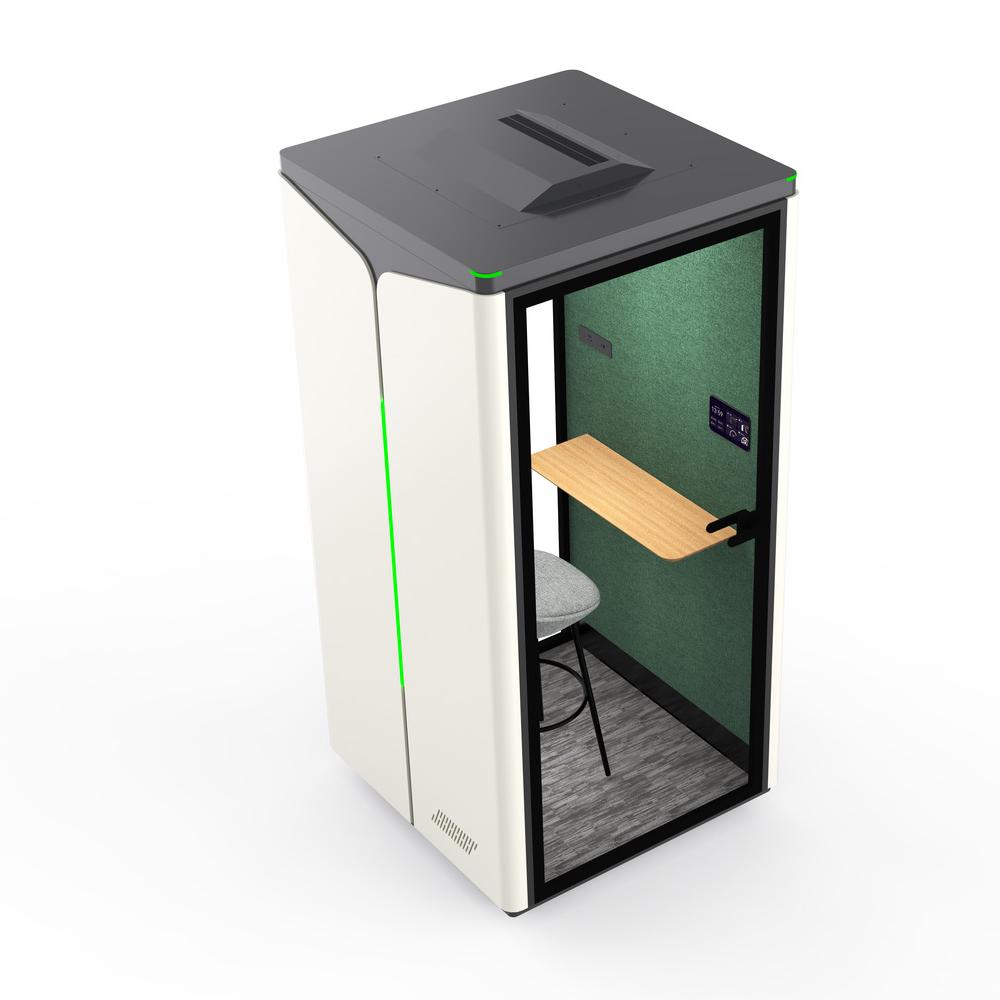

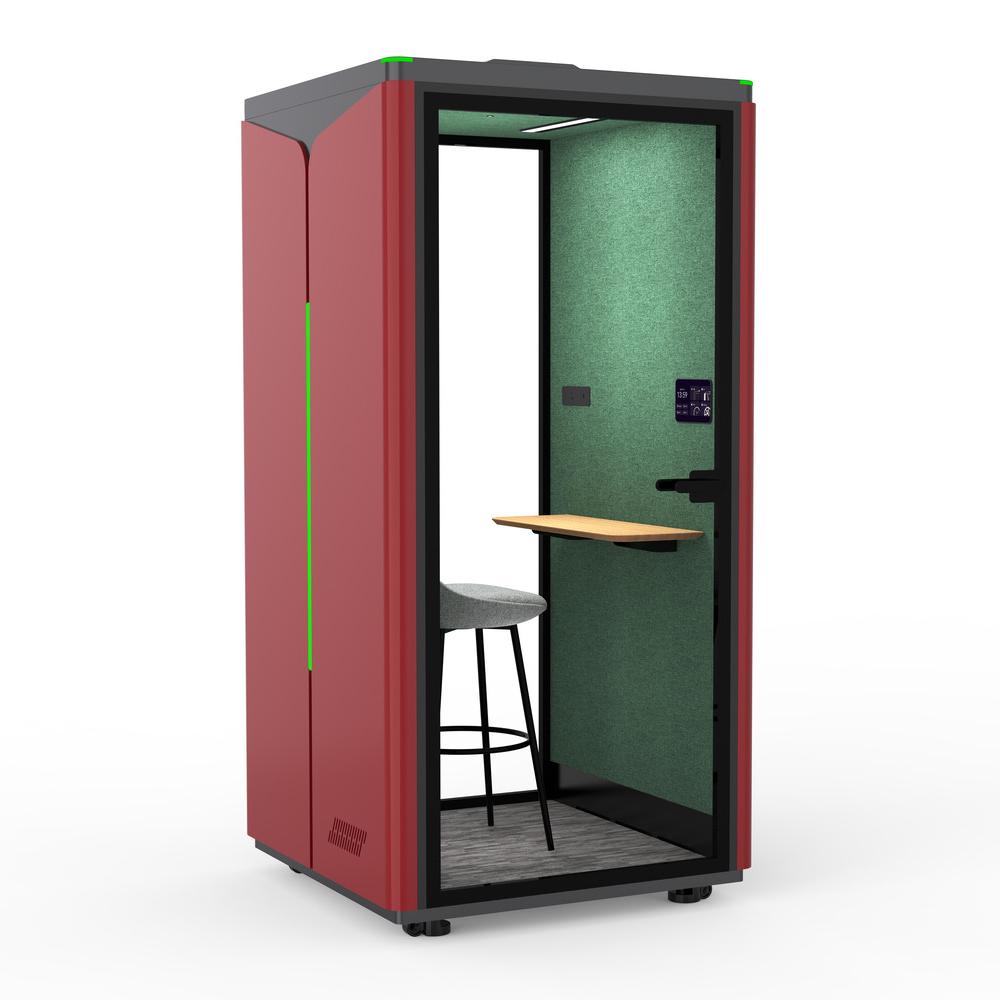

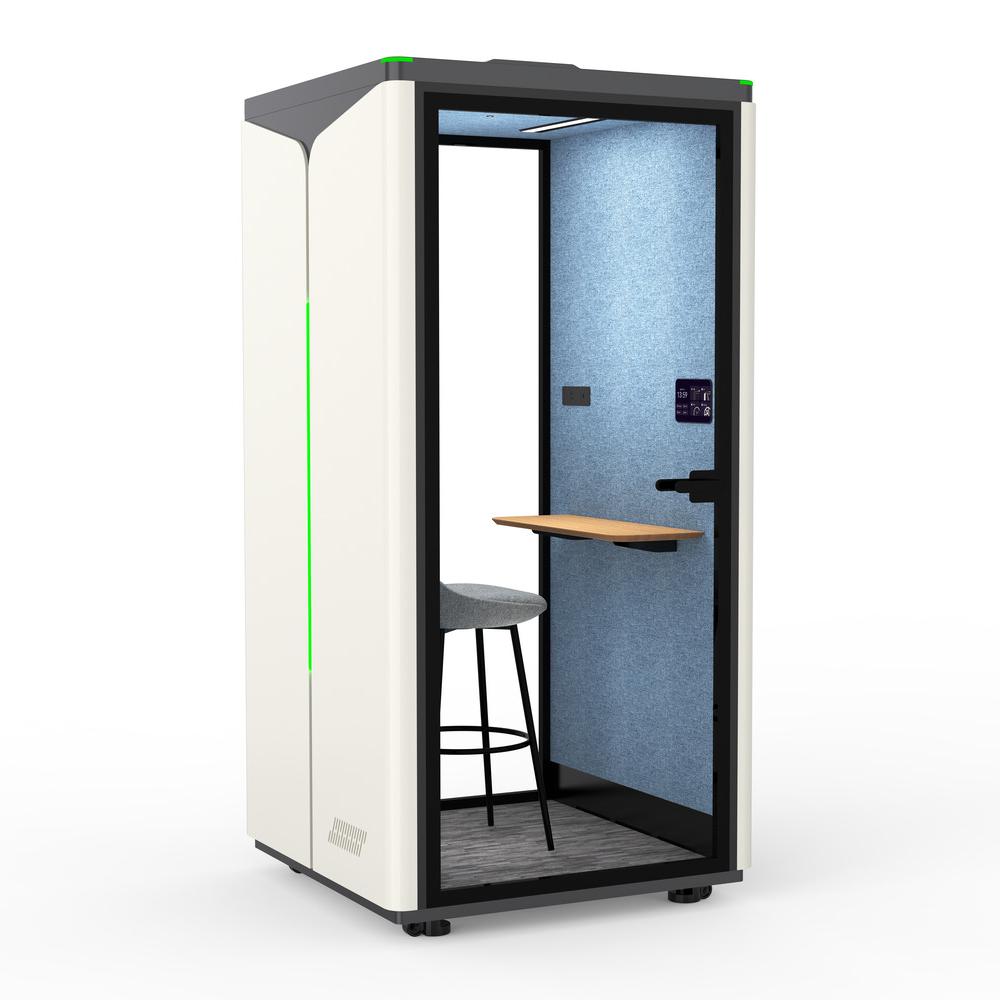

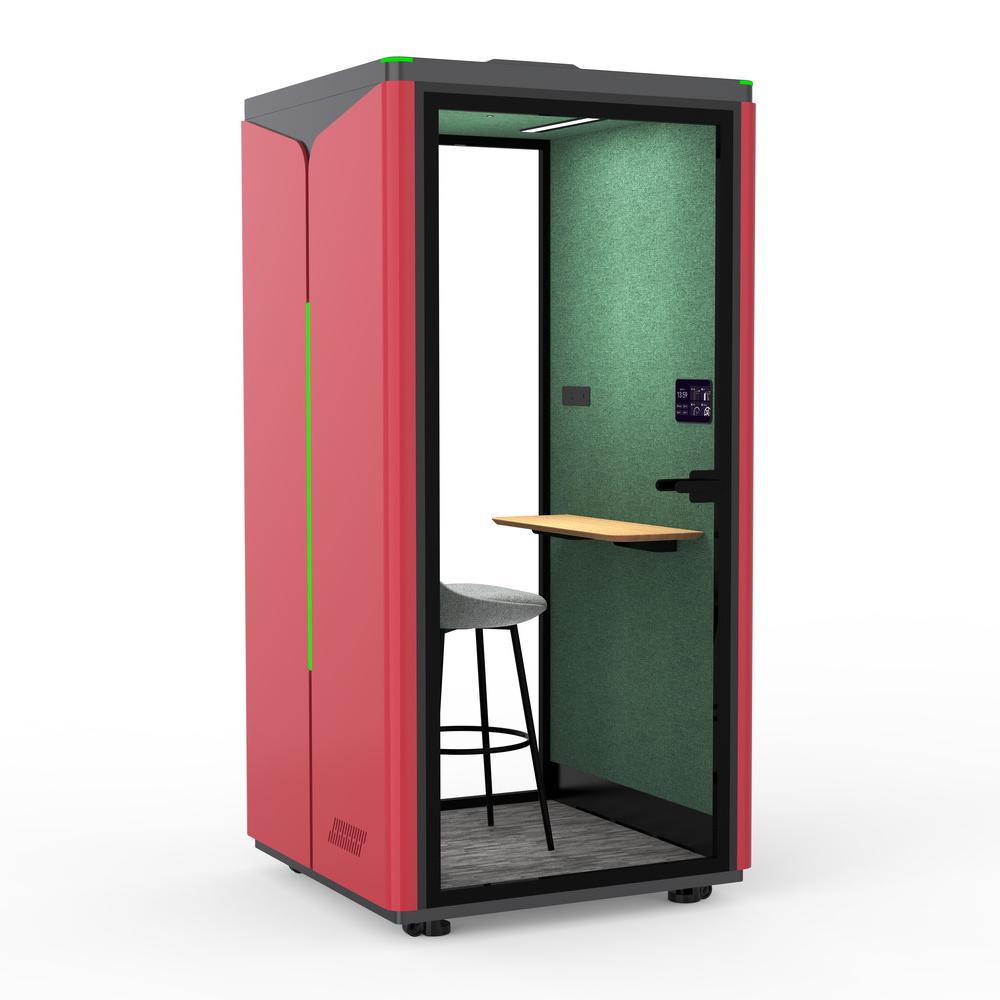

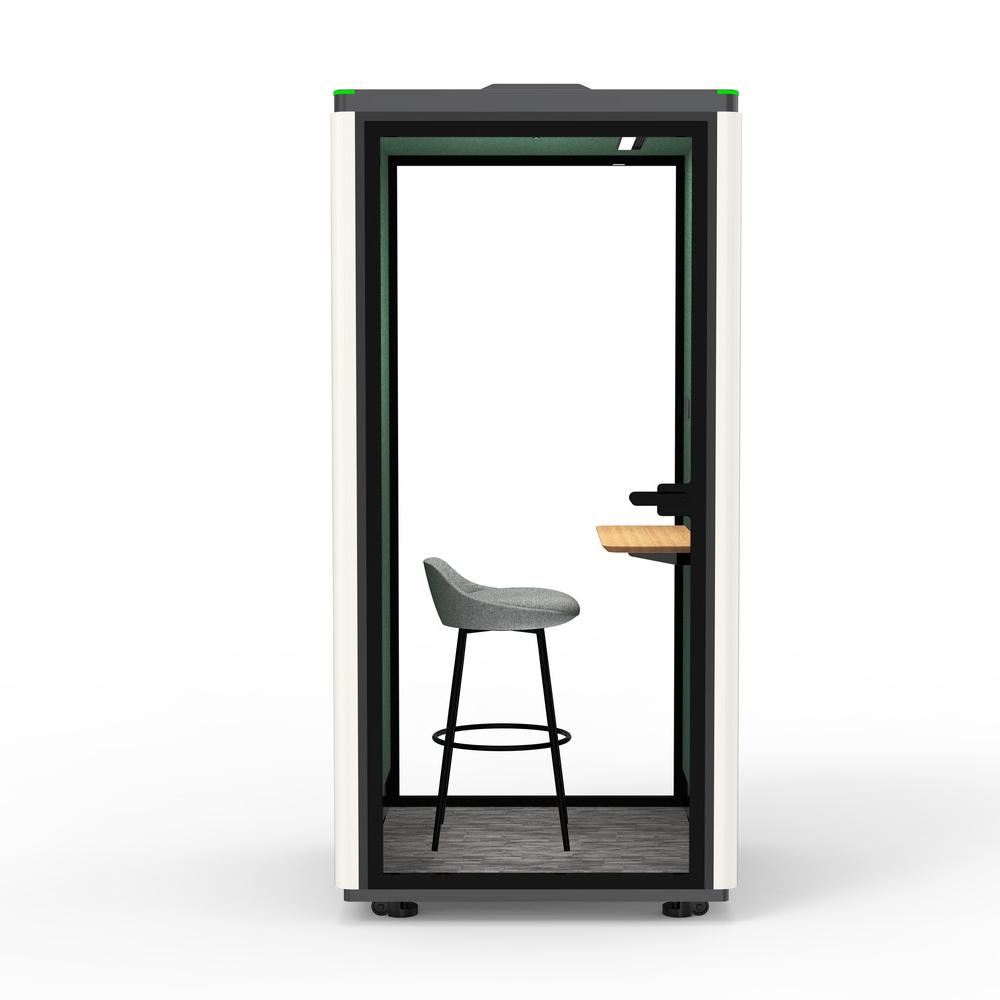

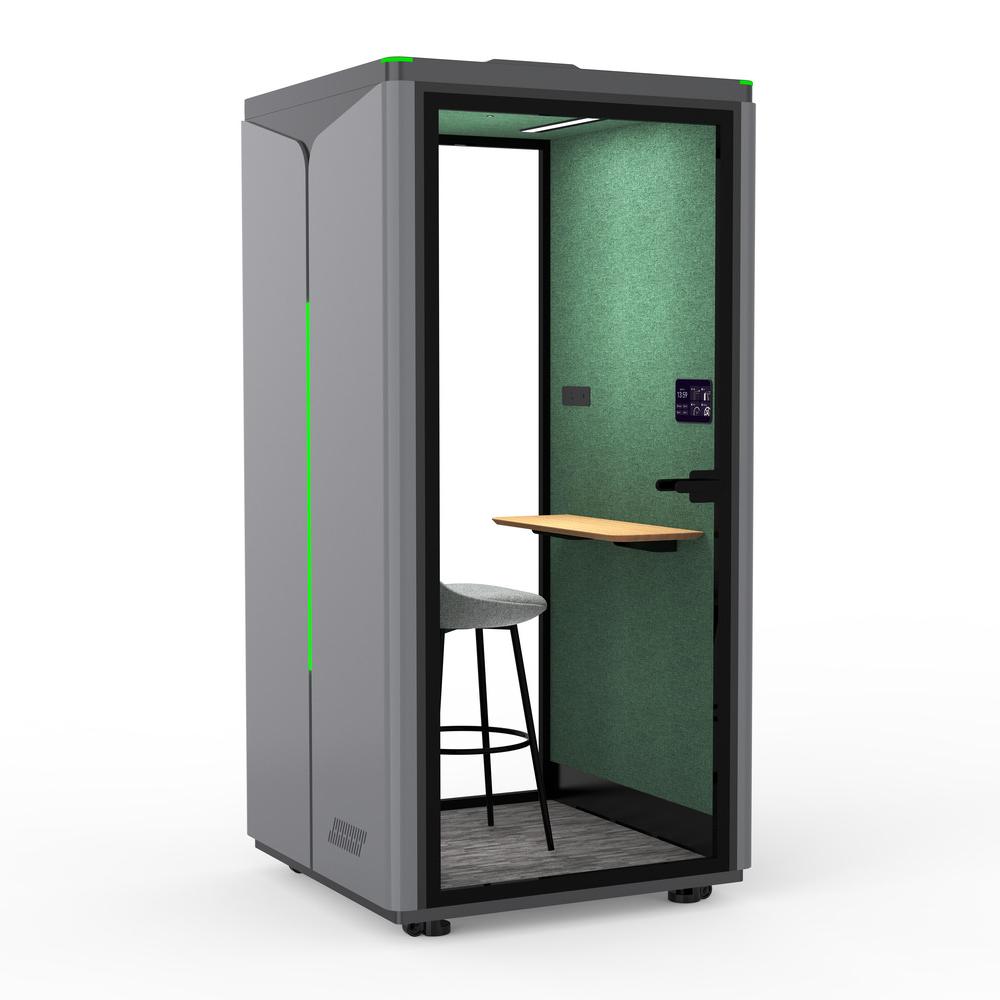

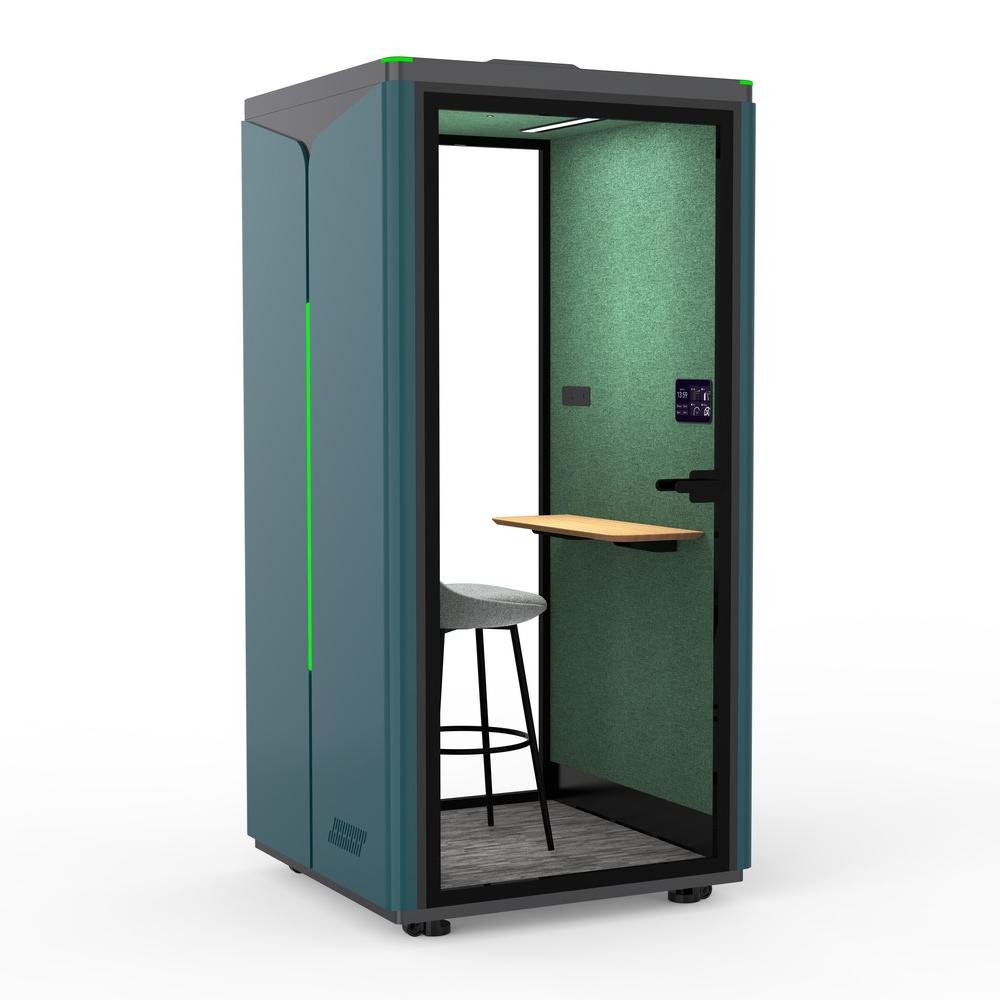

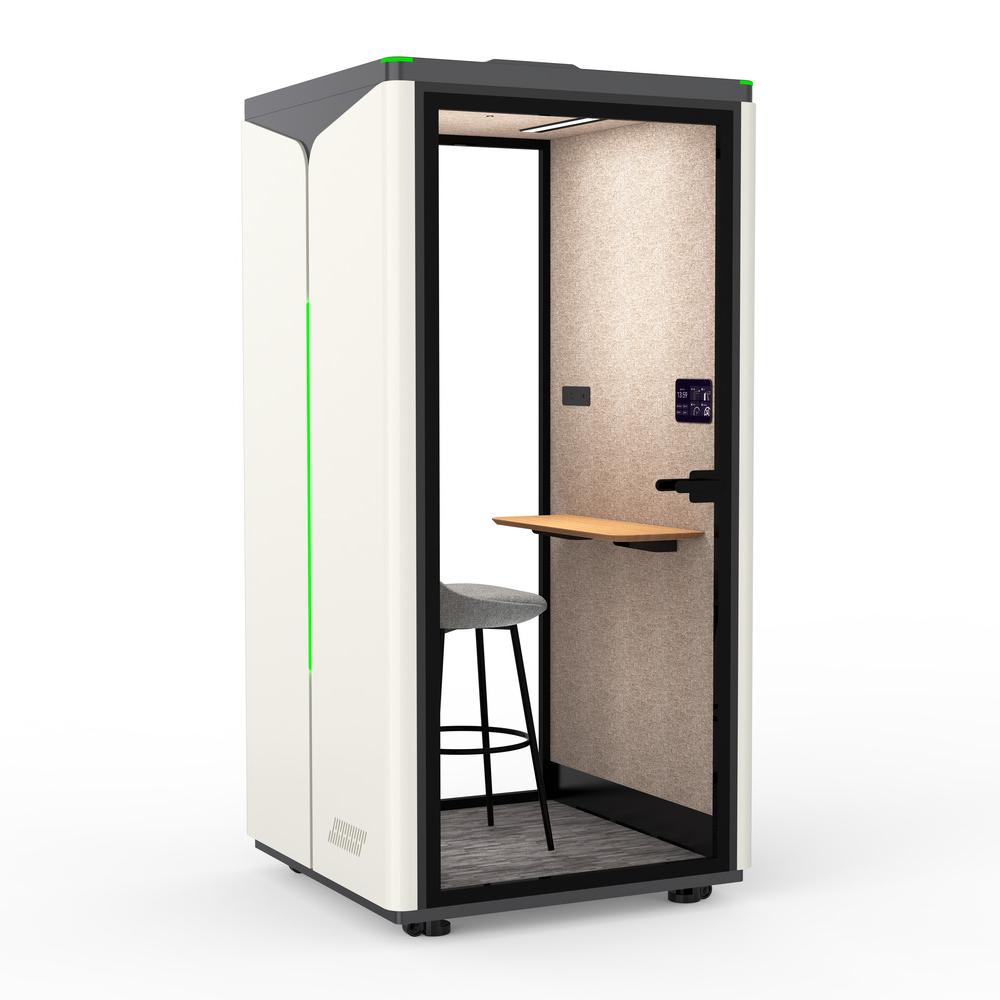

TB-S

Name: TB-S
SKU: 0

Grace Series

Our pods promote focused work, allowing you to eliminate outside distractions.

Businesses can meet their targets, and self-employed individuals can create a better workplace environment in their own homes or rented space.

External dimensions	W1080 mm × D1080 mm × H2300 mm
Internal dimensions	W930 mm × D986 mm × H2000 mm
Internal structure	steel frame
Exterior trim materials	AkzoNobel powder-coated steel sheets (Rahl Color Scale)
Interior wall filling	Polyurethane sound insulation material
Interior materials	Baijiali sound-absorbing panels, Milliken carpets
Door material	Laminated soundproof tempered glass (5mm+1.13mm+5mm)
Lights on	A human presence sensor illuminates when someone enters and turns off approximately 15 seconds after the person leaves (this setting is adjustable).
Ventilation system	Third-generation fresh air exchange system

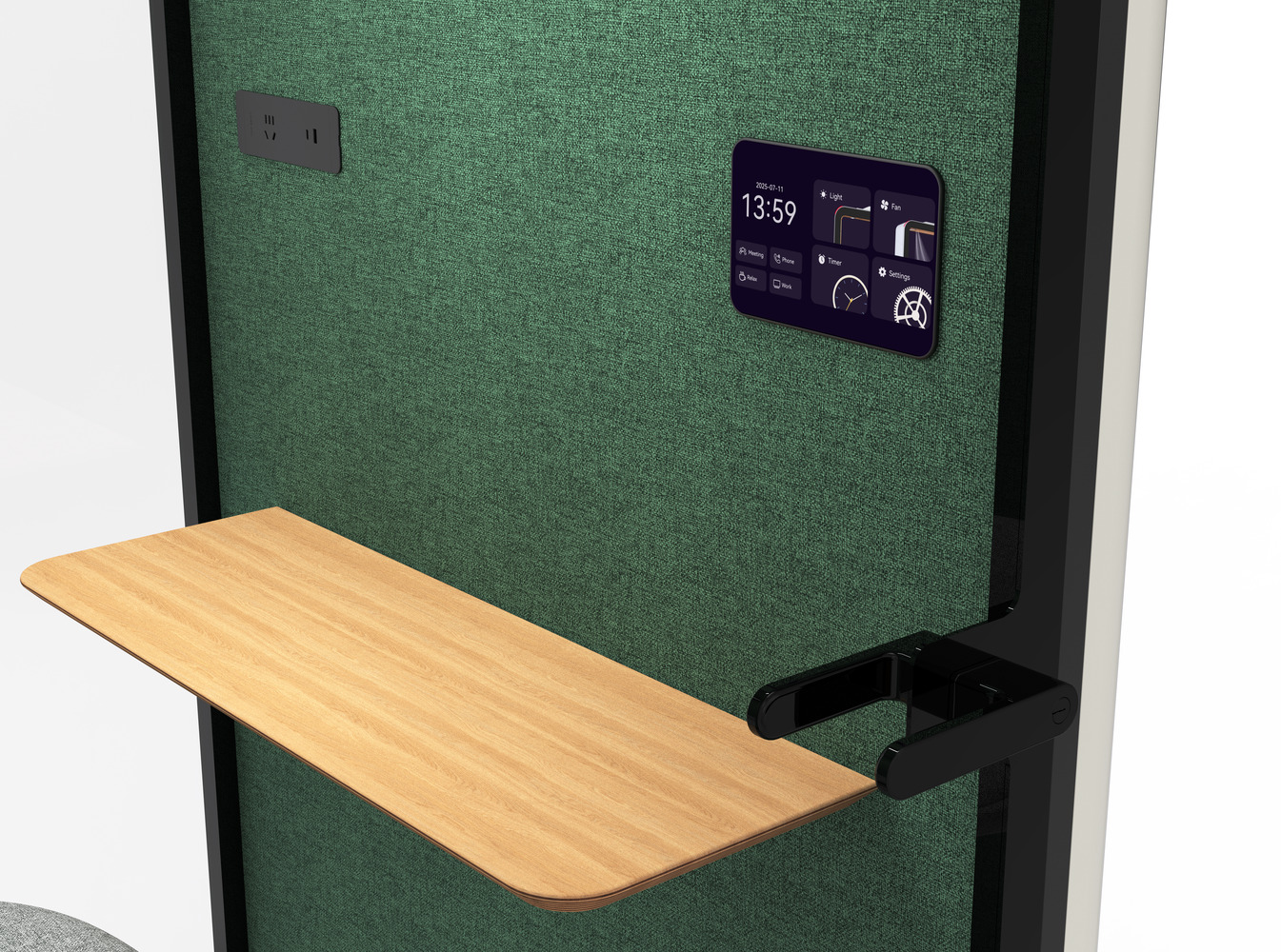

Furniture configuration	High bar stools, Formica fireproof composite imported marine board wall table (fixed or folding bracket)
Power system	100-230V socket panel + touch screen speed and dimming adjustment
Sound insulation and noise reduction	31 dB (SGS or Institute of Acoustics, Chinese Academy of Sciences test report)
Movement method	Four adjustable casters at the bottom allow for easy movement.

WhatsApp: +8615763997628

E-mail: sales@teleboothpod.com

Material selection

Exterior choice:

Internal sound-absorbing panel:

Chair color options:

Table top:

Carpet selection:

Technical Highlights

1. Capacity: 1 person. Dimensions are customizable; if you require a larger soundproof booth to accommodate more people, please provide your specifications for a custom order.
2. Steel frame construction: robust load-bearing capacity and high resistance to deformation.
3. Internally adjustable universal casters: adaptable to a wide variety of installation terrains.
4. Intelligent control system: fully customizable to specific requirements and supports remote software updates.
5. 31.2 dB sound reduction: Class A acoustic insulation for superior noise suppression.
6. Third-generation air circulation system: completes a full air exchange within the cabin in just 50 seconds.
7. Modular assembly: pre-wired at the factory, allowing for the complete assembly of a single cabin unit in just 1–2 hours.
8. Strategic partnership with AkzoNobel for powder coatings; utilizes exclusively eco-friendly materials that are 95% recyclable.
9. Customizable options available for interior layout as well as interior and exterior color schemes, perfectly tailored to meet diverse office requirements.
