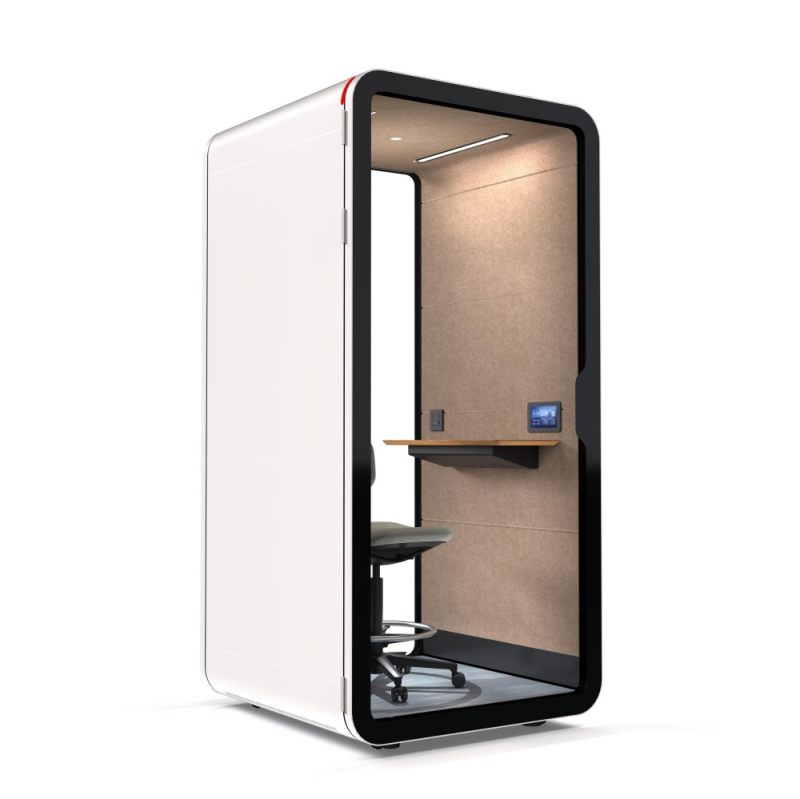

TB-S (14)

TB-S

Circuit System
Furniture Arrangement

Power Module (Side Panel Socket)

1 set of 5-hole 230V power outlets, 1 Type-A charging port, 1 Type-C charging port; total output power up to 5.0V/4.0A.

Power Cord

Black; floor-fed connection; length: 1–3 meters.

Motion Sensor

Ceiling-mounted; upon activation, the lighting and ventilation systems operate at 60% of their total power output.

Digital Control Panel

Personalized functions including adjustable light brightness and color temperature, ventilation speed control, mode selection, and timers.

Air Circulation System

Activated by the motion sensor; equipped with 1 fresh air intake unit; maximum total airflow of 180 m³/h, capable of completing a full air exchange within 35 seconds.

Lighting System

1 x Adjustable LED strip ceiling light (brightness and color temperature); brightness: 2000 lumens; color temperature: 3000–6000K.

Occupancy Status Indicator

Curved, dual-color (Red/Green) display.

Standby Power Consumption

5W

Maximum Product Power Consumption

30W


ChairBoyi Adjustable-Height Chair, featuring excellent resilience, exceptional durability, natural fire resistance, and outstanding eco-friendliness.
Desktop

Height of 98 cm (optional Jiecang electric lifting legs available, offering a height range of 80–120 cm); desktop dimensions are 600 × 300 × 20 mm. Constructed from 20 mm thick birch marine-grade plywood, with a fire-retardant finish applied to the top surface. The fixed mounting bracket has a maximum load capacity of 20 kg.


Circuit System
Furniture Arrangement

Power Module (Side Panel Socket)

1 set of 5-hole 230V power outlets, 1 Type-A charging port, 1 Type-C charging port; total output power up to 5.0V/4.0A.

Power Cord

Black; floor-fed connection; length: 1–3 meters.

Motion Sensor

Ceiling-mounted; upon activation, the lighting and ventilation systems operate at 60% of their total power output.

Digital Control Panel

Personalized functions including adjustable light brightness and color temperature, ventilation speed control, mode selection, and timers.

Air Circulation System

Activated by the motion sensor; equipped with 1 fresh air intake unit; maximum total airflow of 180 m³/h, capable of completing a full air exchange within 35 seconds.

Lighting System

1 x Adjustable LED strip ceiling light (brightness and color temperature); brightness: 2000 lumens; color temperature: 3000–6000K.

Occupancy Status Indicator

Curved, dual-color (Red/Green) display.

Standby Power Consumption

5W

Maximum Product Power Consumption

30W


ChairBoyi Adjustable-Height Chair, featuring excellent resilience, exceptional durability, natural fire resistance, and outstanding eco-friendliness.
Desktop

Height of 98 cm (optional Jiecang electric lifting legs available, offering a height range of 80–120 cm); desktop dimensions are 600 × 300 × 20 mm. Constructed from 20 mm thick birch marine-grade plywood, with a fire-retardant finish applied to the top surface. The fixed mounting bracket has a maximum load capacity of 20 kg.

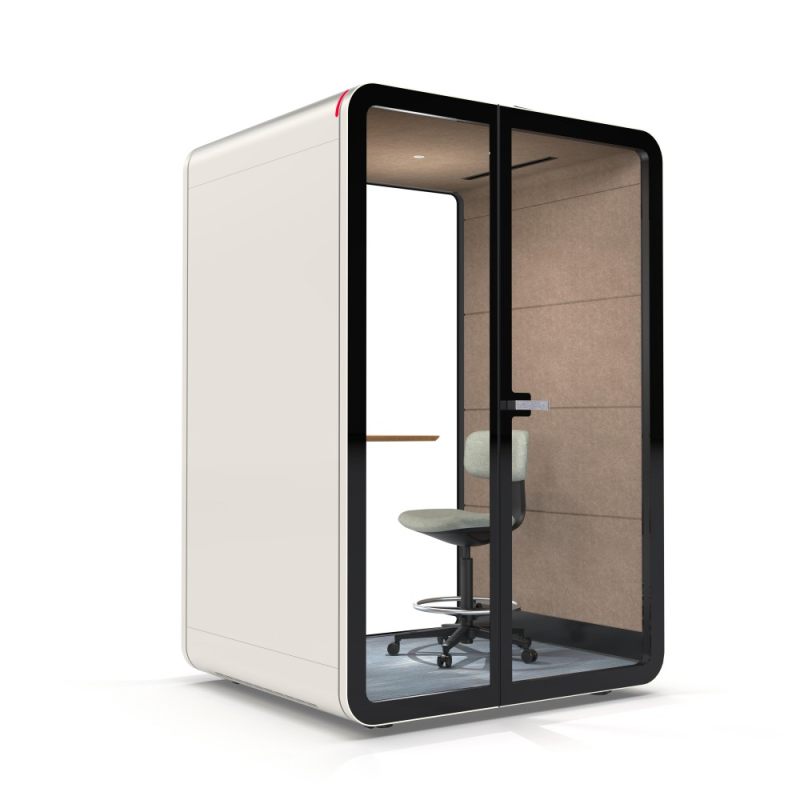

TB-W (5)

TB-W

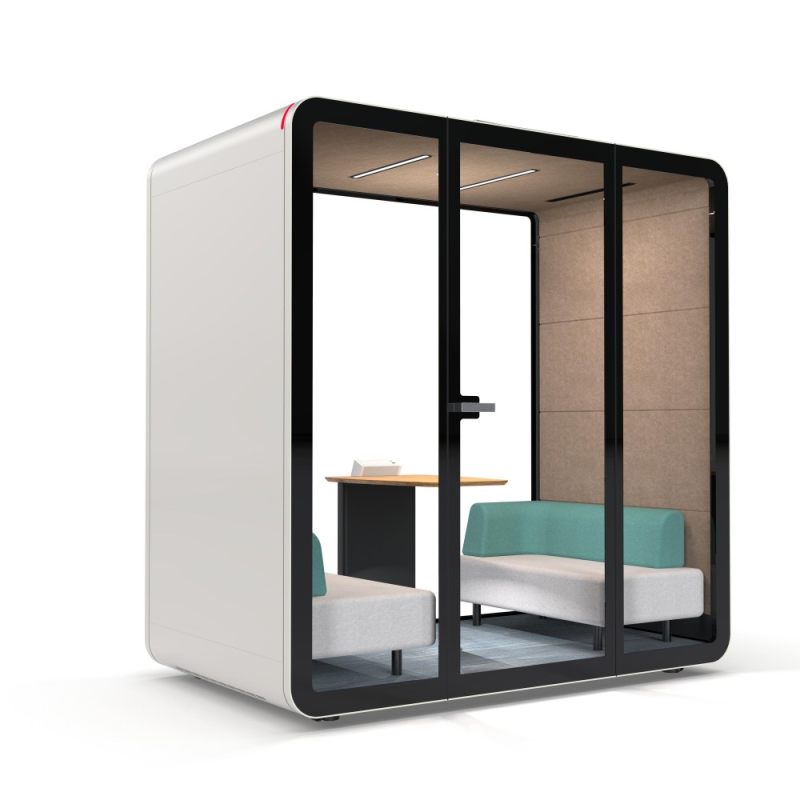

TB-M-21

TB-M

Circuit System
Furniture Arrangement

Power Module (Side Panel Socket)

3 sets of 5-hole 230V power outlets, 1 Type-A charging port, and 1 Type-C charging port, with a total maximum output of 5.0V/4.0A.

Power Cord

Black; floor-fed connection; length: 1–3 meters.

Motion Sensor

Ceiling-mounted; upon activation, the lighting and ventilation systems operate at 60% of their total power output.

Digital Control Panel

Personalized functions including adjustable light brightness and color temperature, ventilation speed control, mode selection, and timers.

Air Circulation System

Activated by motion sensors and equipped with two fresh air units, the system delivers a maximum total ventilation volume of 360 cubic meters per hour, capable of completing a full air exchange within 49 seconds.

Lighting System

Dimmable and Color-Tunable LED Strip Ceiling Lights x 2; Brightness: 4000 Lumens; Color Temperature: 3000–6000K.

Occupancy Status Indicator

Curved, dual-color (Red/Green) display.

Standby Power Consumption

5W

Maximum Product Power Consumption

55W


SofaSeat module (including backrest) overall dimensions: 1150 × 650 × 710 mm. The internal frame is constructed from a wood-based substrate; the elastic layer consists of 100% polyurethane foam, and the filling comprises 100% polyester fiber batting. The exterior is upholstered in soft Huayu Brothers fabric. Maximum load capacity: 150 kg.
WorkstationTabletop dimensions: 800 × 550 × 20 mm. Constructed from 20 mm thick birch marine-grade plywood; the top surface features a heat-pressed, fire-retardant finish utilizing kraft paper impregnated with melamine-phenol resin. The support structure consists of a 46 × 6.5 × 70 cm steel support box combined with a front support column; the surface is finished with an Akzo black powder coating. Maximum load capacity: 30 kg.


Circuit System
Furniture Arrangement

Power Module (Side Panel Socket)

3 sets of 5-hole 230V power outlets, 1 Type-A charging port, and 1 Type-C charging port, with a total maximum output of 5.0V/4.0A.

Power Cord

Black; floor-fed connection; length: 1–3 meters.

Motion Sensor

Ceiling-mounted; upon activation, the lighting and ventilation systems operate at 60% of their total power output.

Digital Control Panel

Personalized functions including adjustable light brightness and color temperature, ventilation speed control, mode selection, and timers.

Air Circulation System

Motion-sensor activated; equipped with four fresh air units, providing a maximum total ventilation volume of 720 m³/h and capable of completing a full air exchange within 50 seconds.

Lighting System

4 x Dimmable LED strip ceiling lights with adjustable color temperature; brightness: 8,000 lumens; color temperature: 3,000–6,000K.

Occupancy Status Indicator

Curved, dual-color (Red/Green) display.

Standby Power Consumption

5W

Maximum Product Power Consumption

110W


SofaSeat Module (including backrest) — Overall dimensions: 2230 × 650 × 710 mm. The internal frame is constructed from a wood-based substrate; the elastic layer consists of 100% polyurethane foam, and the cushioning fill is 100% polyester fiber. The exterior is upholstered in soft Huayu Brothers fabric. Maximum load capacity: 150 kg.
WorkstationTabletop dimensions: 1600 × 600 × 20 mm. Constructed from 20 mm thick birch marine-grade plywood; the top surface features a heat-pressed, fire-resistant finish utilizing kraft paper impregnated with melamine-phenol resin. The support structure consists of a 46 × 6.5 × 70 cm steel support box combined with a front support column; the surface is finished with an Akzo black powder coating. Maximum load capacity: 30 kg.

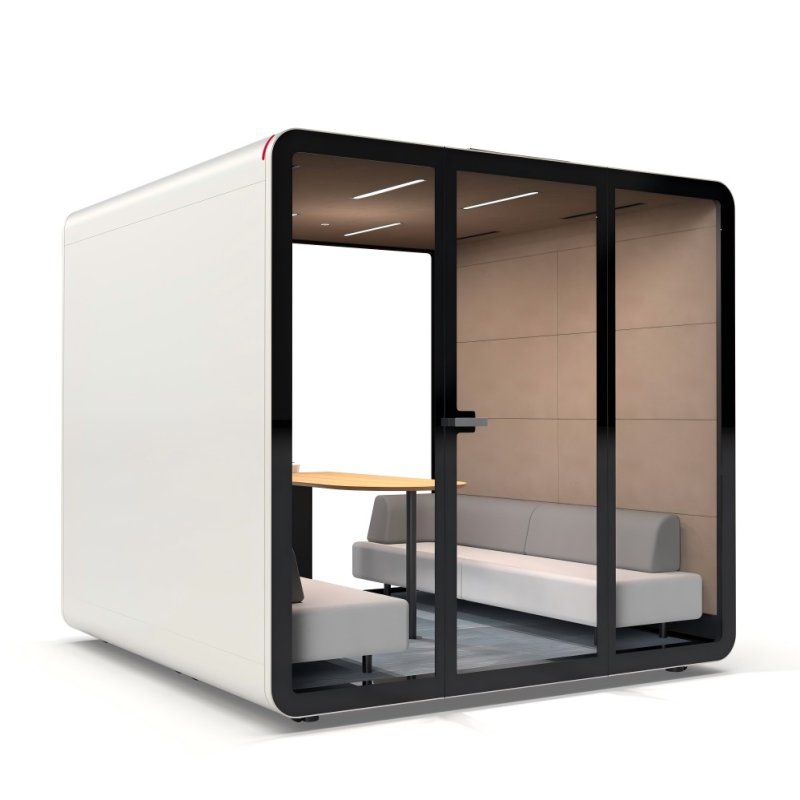

TB-ML 24001

TB-ML2400

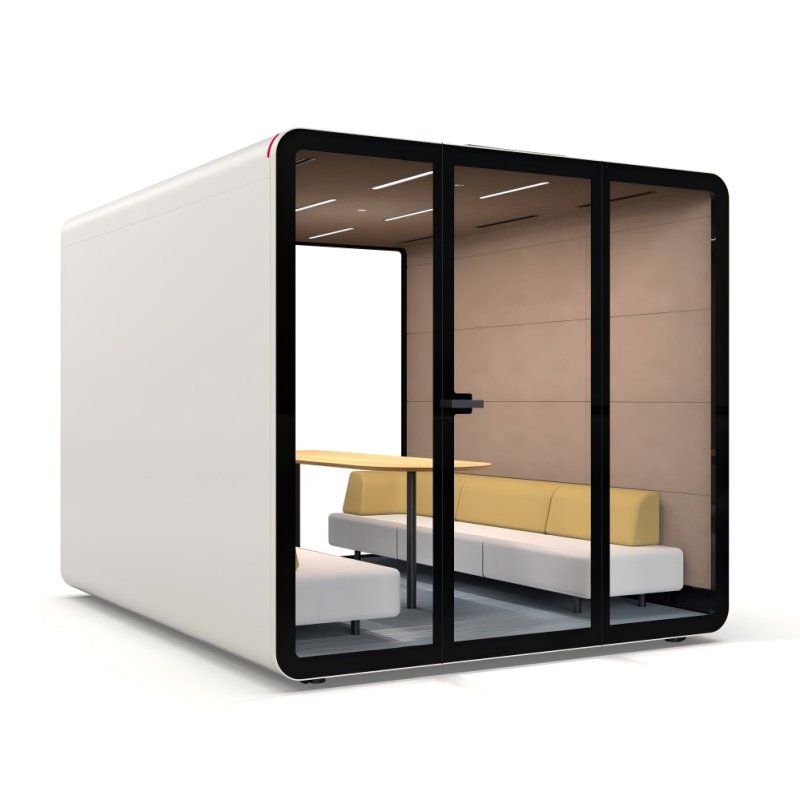

3000改.7277

TB-ML3000

Circuit System
Furniture Arrangement

Power Module (Side Panel Socket)

3 sets of 5-hole 230V power outlets, 1 Type-A charging port, and 1 Type-C charging port, with a total maximum output of 5.0V/4.0A.

Power Cord

Black; floor-fed connection; length: 1–3 meters.

Motion Sensor

Ceiling-mounted; upon activation, the lighting and ventilation systems operate at 60% of their total power output.

Digital Control Panel

Personalized functions including adjustable light brightness and color temperature, ventilation speed control, mode selection, and timers.

Air Circulation System

Motion-sensor activated; equipped with six fresh air units, providing a maximum total ventilation volume of 10800 m³/h and capable of completing a full air exchange within 43 seconds.

Lighting System

6 x Dimmable LED strip ceiling lights with adjustable color temperature; brightness: 12,000 lumens; color temperature: 3,000–6,000K.

Occupancy Status Indicator

Curved, dual-color (Red/Green) display.

Standby Power Consumption

5W

Maximum Product Power Consumption

170W


SofaSeat Module (including backrest) — Overall dimensions: 2800 × 650 × 710 mm. The internal frame is constructed from a wood-based substrate; the elastic layer consists of 100% polyurethane foam, and the cushioning fill is 100% polyester fiber. The exterior is upholstered in soft Huayu Brothers fabric. Maximum load capacity: 150 kg.
WorkstationTabletop dimensions: 2200 × 600 × 20 mm. Constructed from 20 mm thick birch marine-grade plywood; the top surface features a heat-pressed, fire-resistant finish utilizing kraft paper impregnated with melamine-phenol resin. The support structure consists of a 46 × 6.5 × 70 cm steel support box combined with a front support column; the surface is finished with an Akzo black powder coating. Maximum load capacity: 30 kg.
