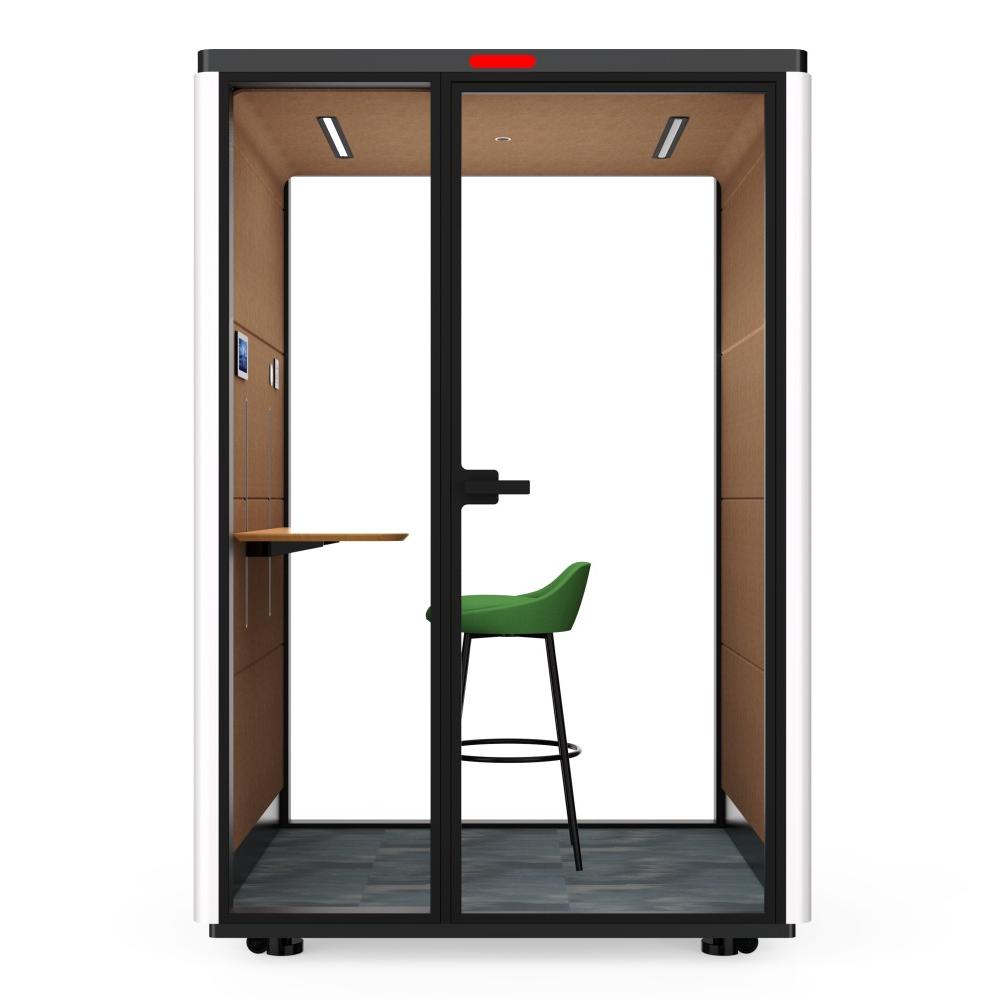

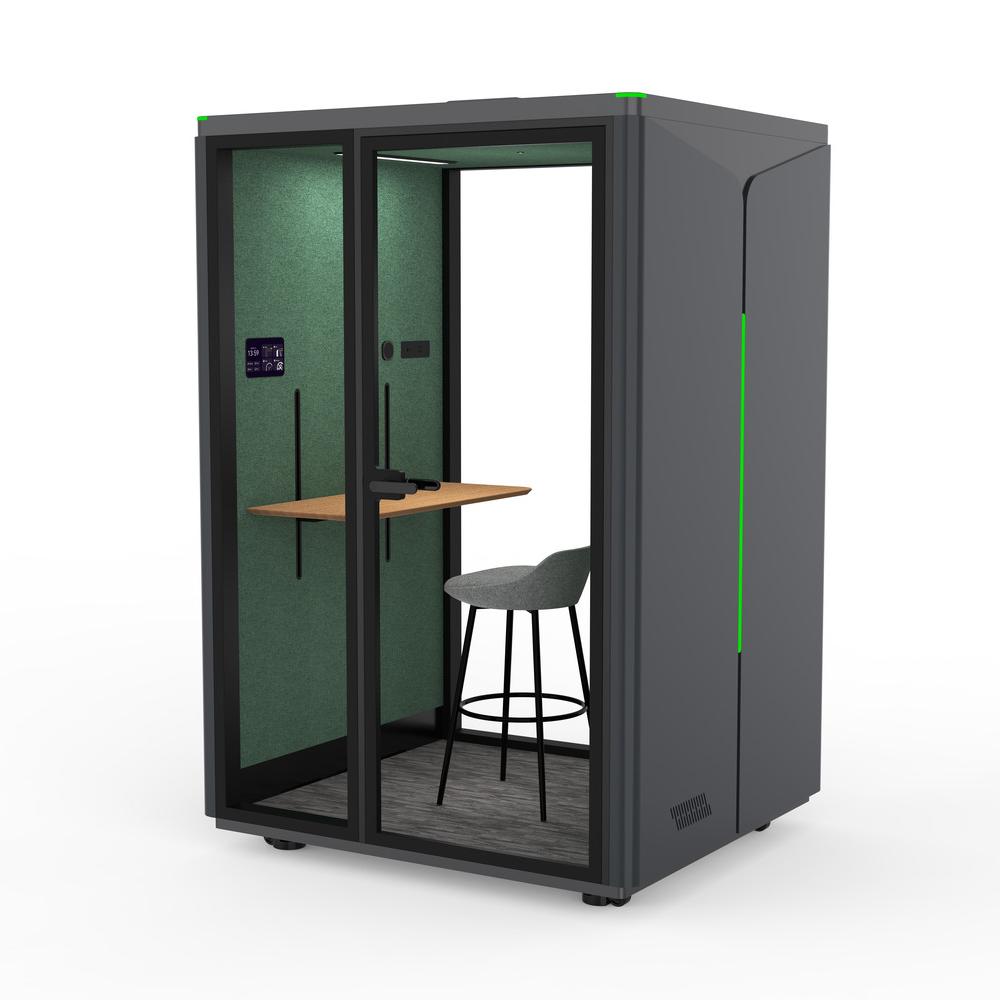

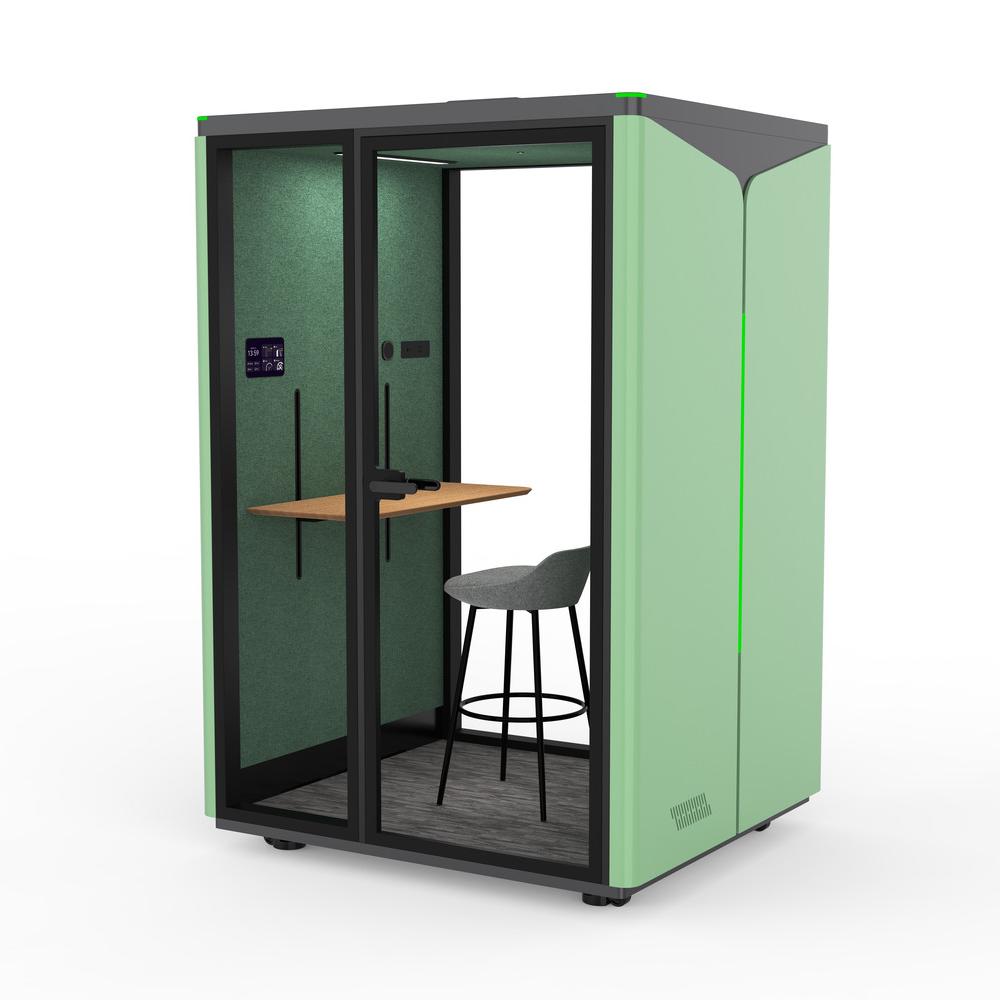

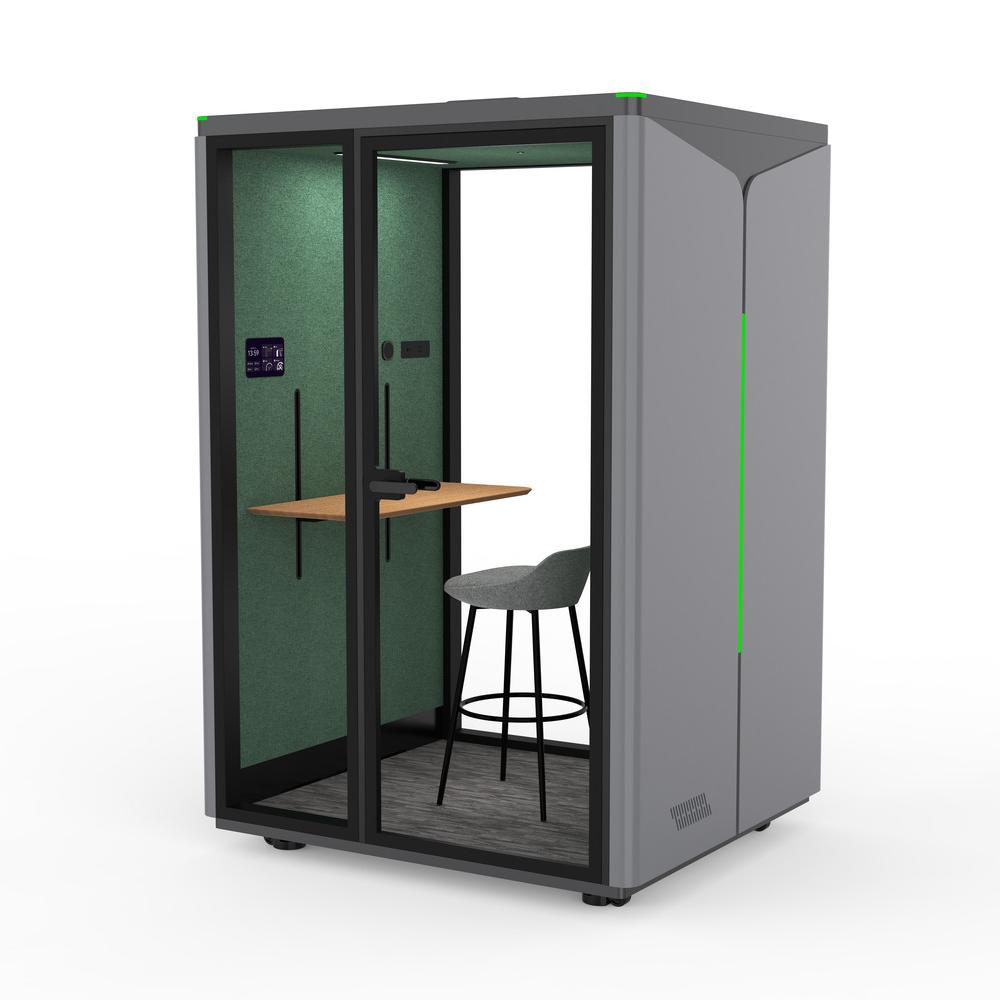

TB-WH

Name: TB-WH
SKU: 0

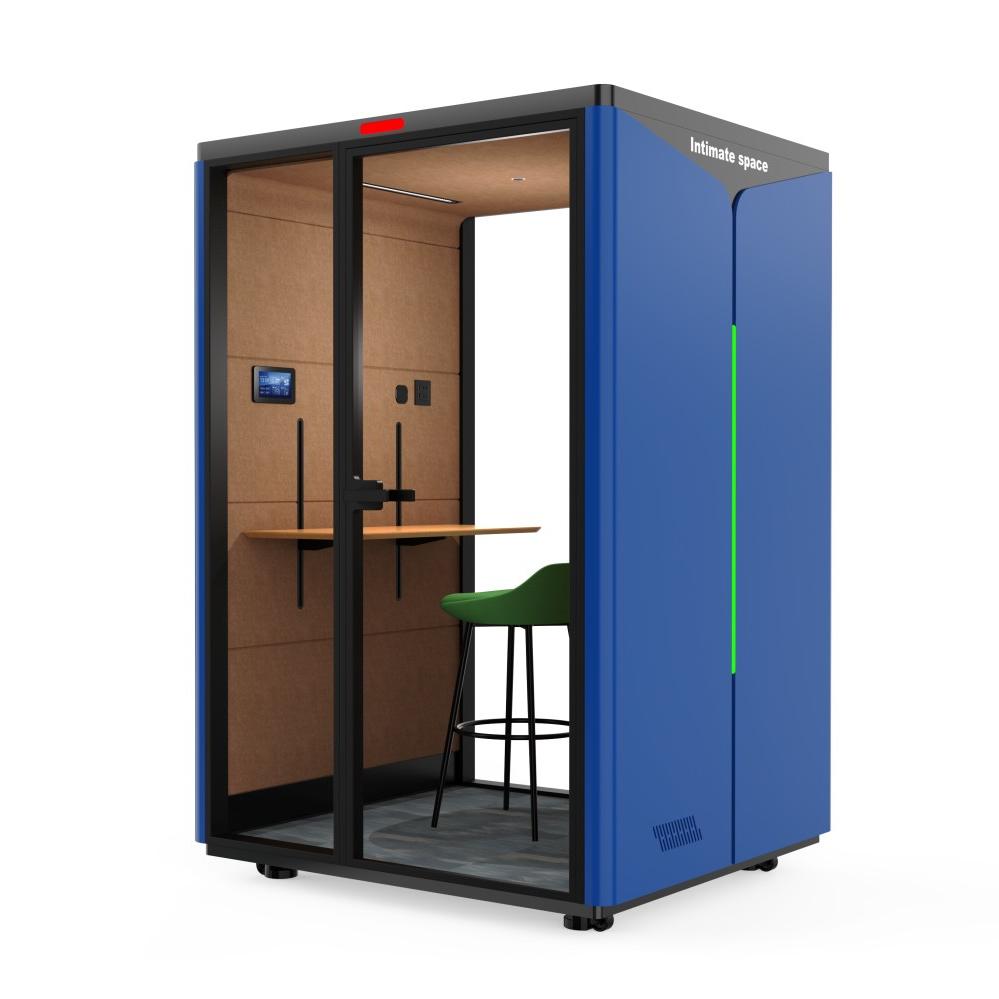

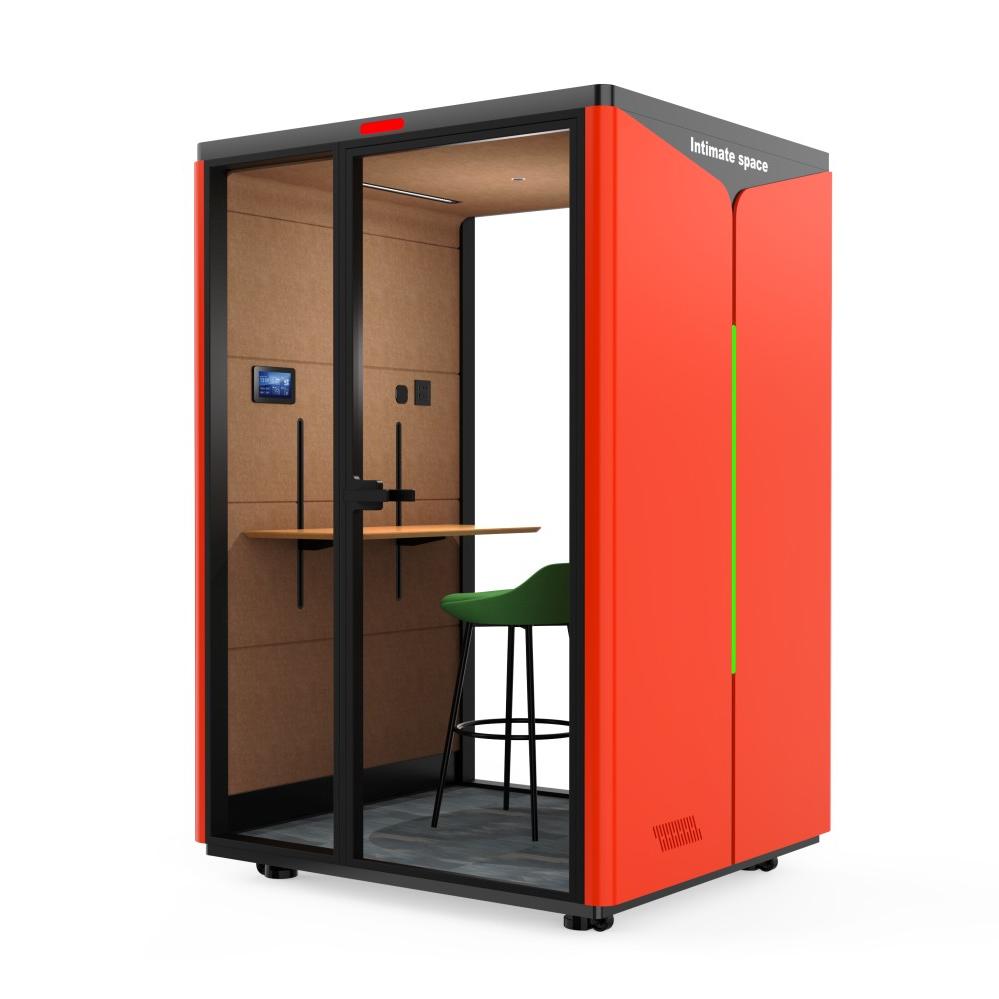

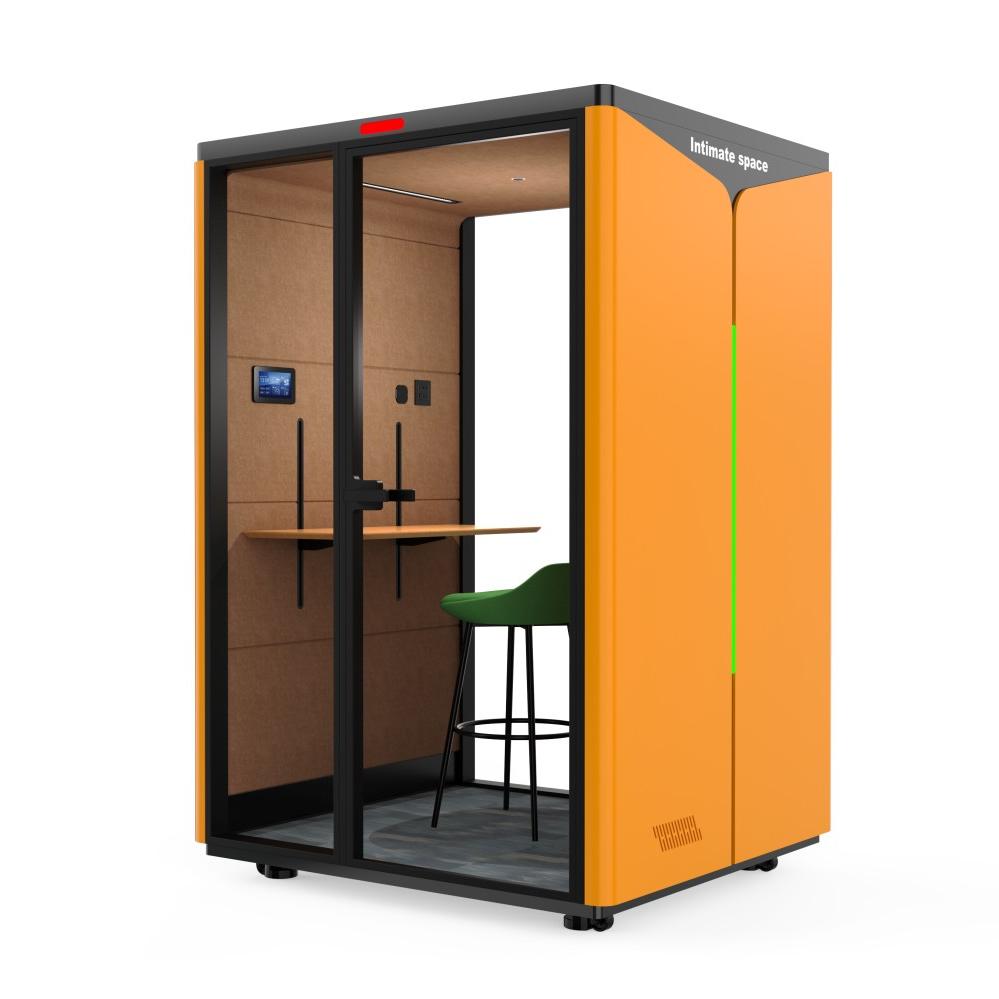

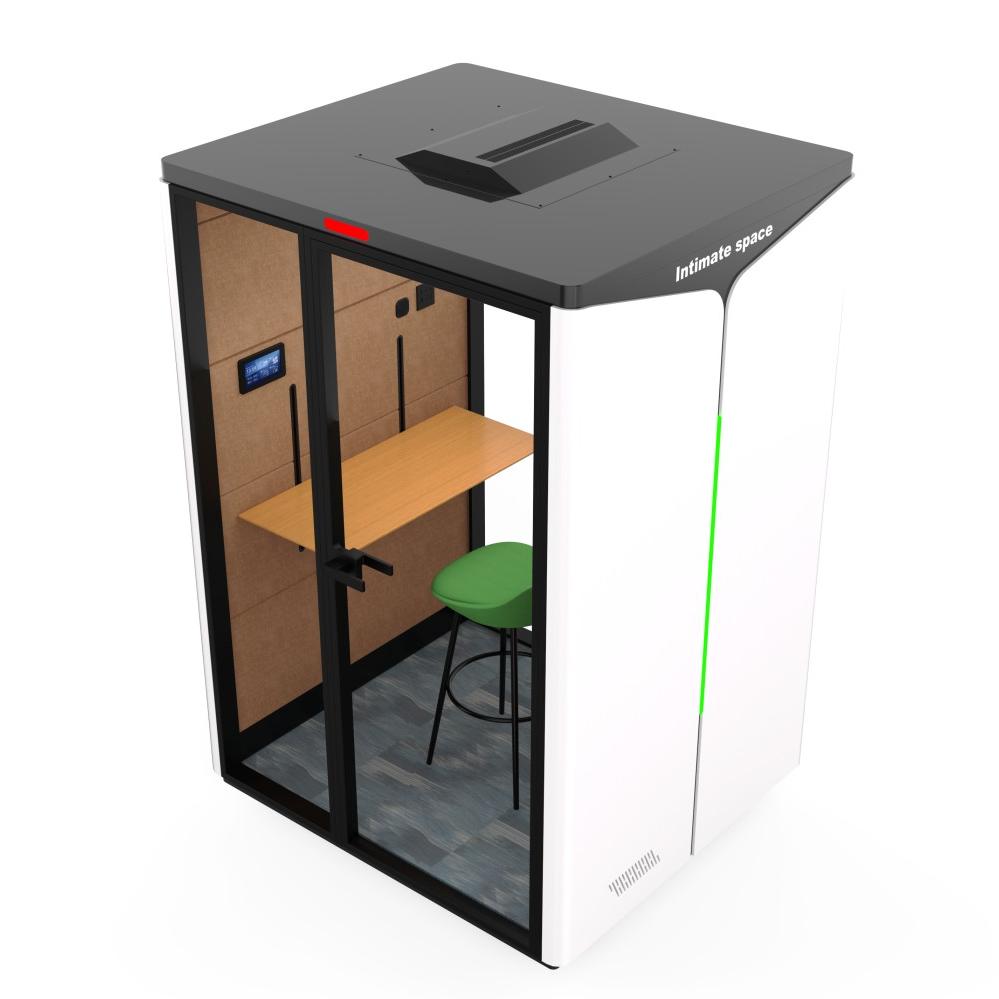

Grace Series

Our pods promote focused work, allowing you to eliminate outside distractions.

Businesses can meet their targets, and self-employed individuals can create a better workplace environment in their own homes or rented space.

External dimensions	W1500 mm × D1320 mm × H2300 mm
Internal dimensions	W1350 mm × D1200 mm × H2000 mm
Internal structure	steel frame
Exterior trim materials	AkzoNobel powder-coated steel sheets (Rahl Color Scale)
Interior wall filling	Polyurethane sound insulation material
Interior materials	Baijiali sound-absorbing panels, Milliken carpets
Door material	Laminated soundproof tempered glass (5mm+1.13mm+5mm)
Lights on	A human presence sensor illuminates when someone enters and turns off approximately 15 seconds after the person leaves (this setting is adjustable).
Ventilation system	Third-generation fresh air exchange system

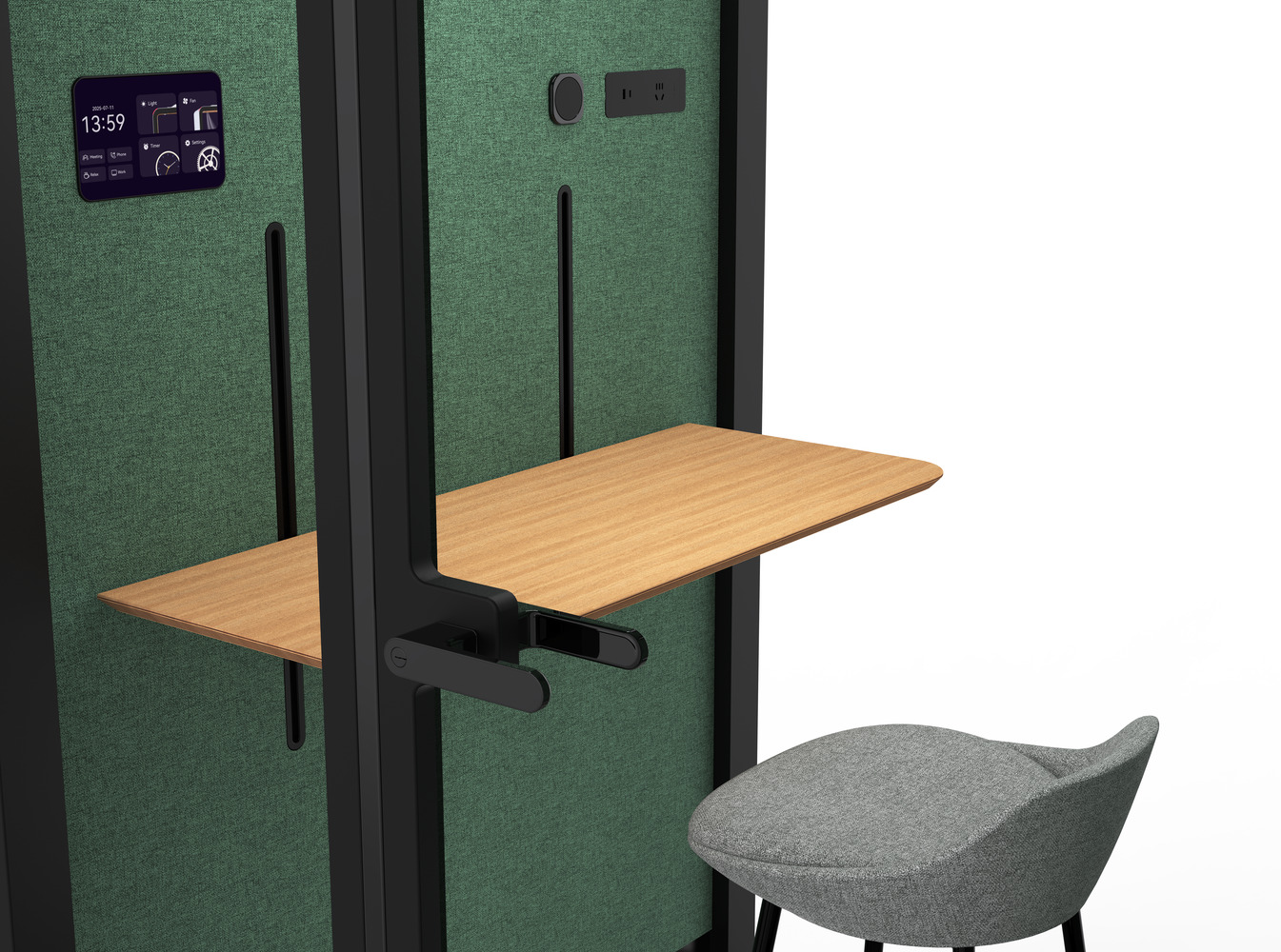

Furniture configuration	High bar stools, Formica fireproof composite imported marine board wall table (Adjustable Stand)
Power system	100-230V socket panel + touch screen speed and dimming adjustment
Sound insulation and noise reduction	28-31 dB (SGS or Institute of Acoustics, Chinese Academy of Sciences test report)
Movement method	Four adjustable casters at the bottom allow for easy movement.

WhatsApp: +8615763997628

E-mail: sales@teleboothpod.com

Material selection

Exterior choice:

Internal sound-absorbing panel:

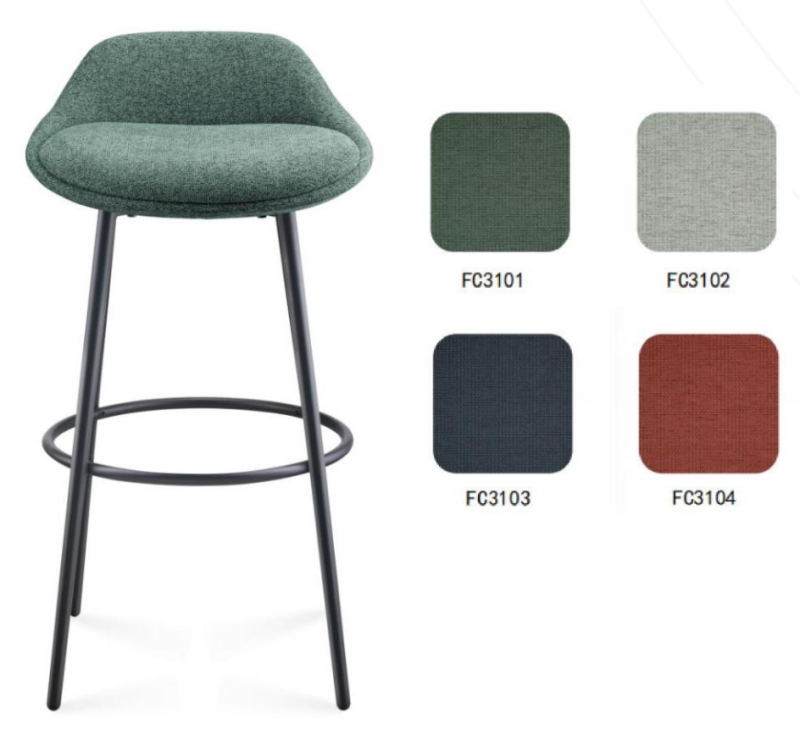

Chair color options:

Table top:

Carpet selection:

Technical Highlights

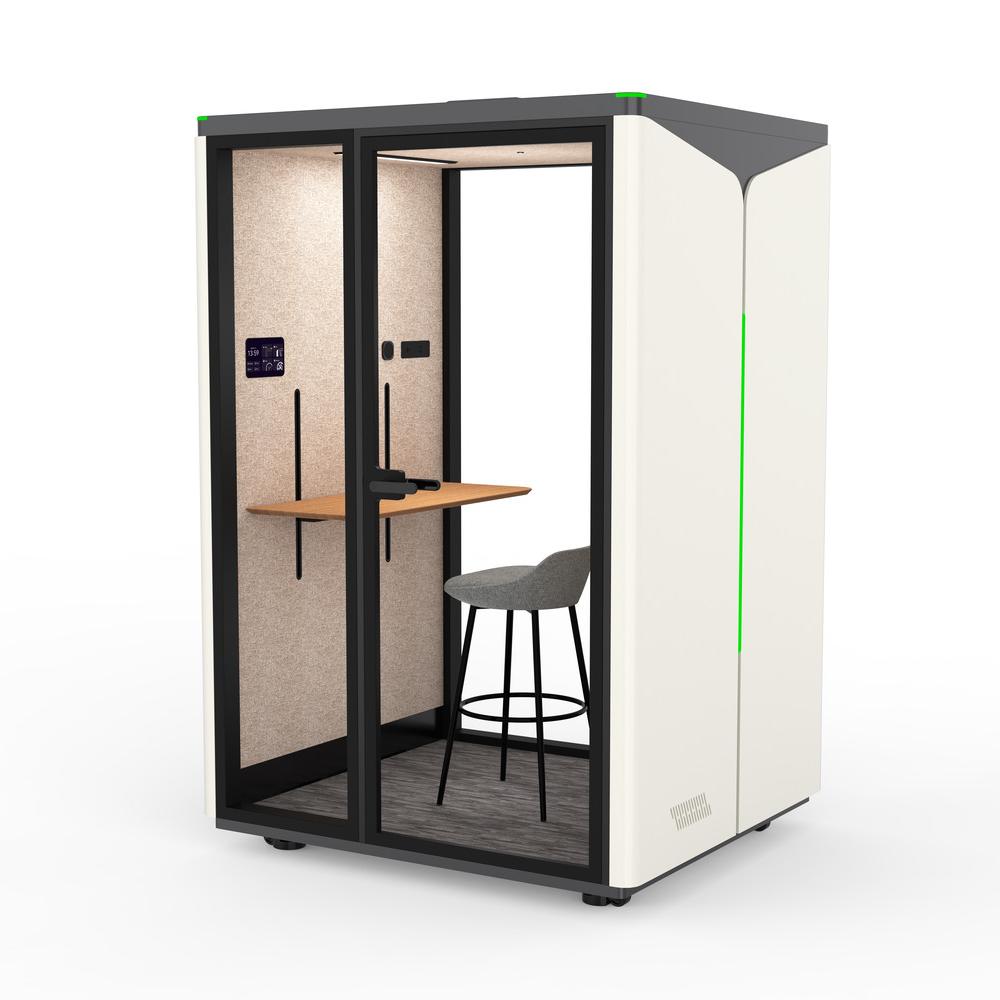

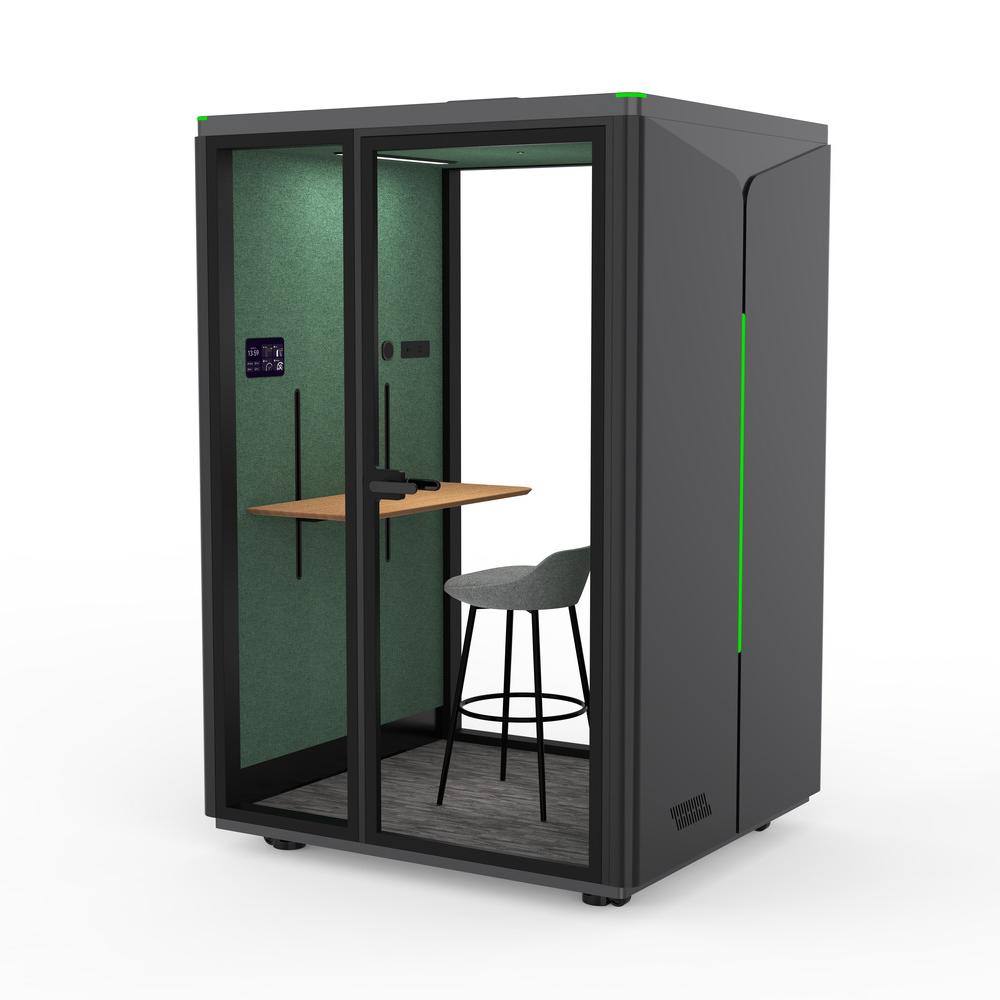

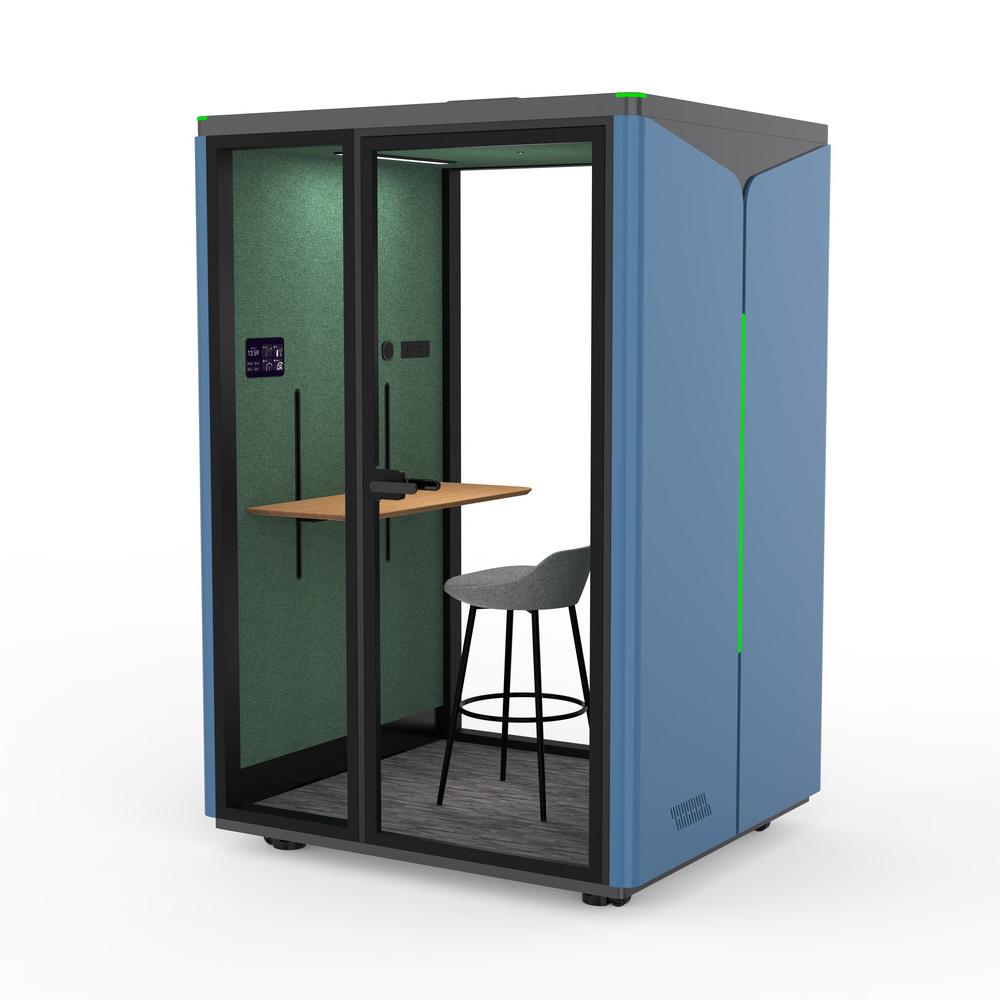

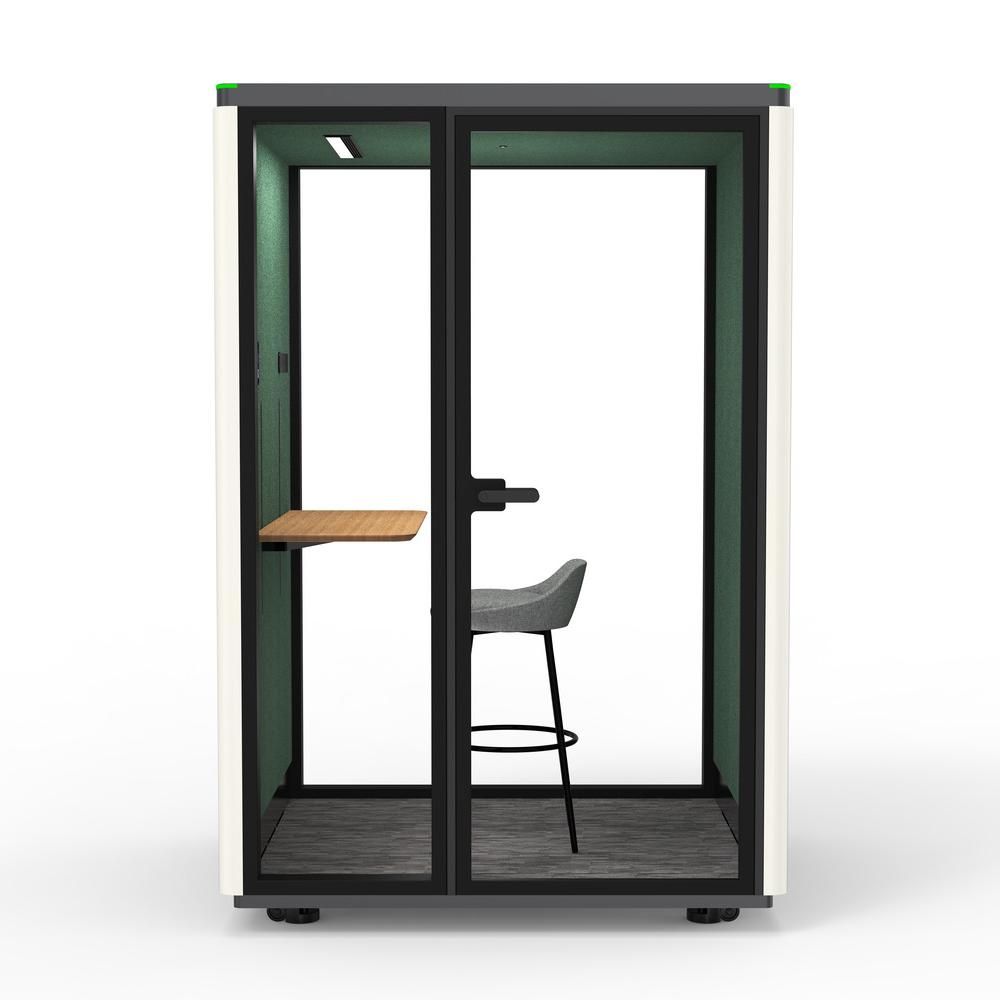

1. Capacity: 1-2 person. Dimensions are customizable; if you require a larger soundproof booth to accommodate more people, please provide your specifications for a custom order.
2. Steel frame construction: robust load-bearing capacity and high resistance to deformation.
3. Internally adjustable universal casters: adaptable to a wide variety of installation terrains.
4. Intelligent control system: fully customizable to specific requirements and supports remote software updates.
5. 31.2 dB sound reduction: Class A acoustic insulation for superior noise suppression.

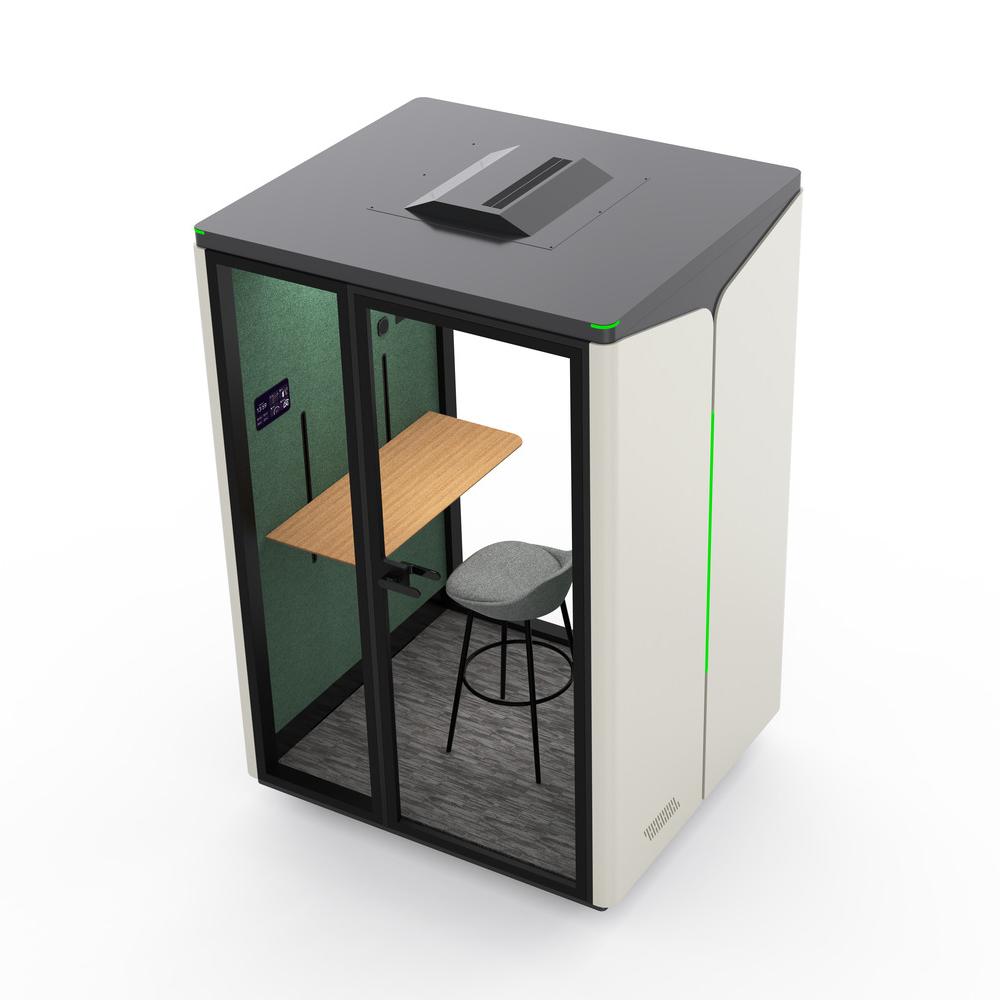

6. Third-generation air circulation system: completes a full air exchange within the cabin in just 50 seconds.
7. Modular assembly: pre-wired at the factory, allowing for the complete assembly of a single cabin unit in just 1–2 hours.
8. Strategic partnership with AkzoNobel for powder coatings; utilizes exclusively eco-friendly materials that are 95% recyclable.
9. Customizable options available for interior layout as well as interior and exterior color schemes, perfectly tailored to meet diverse office requirements.
